Expanded Highlights

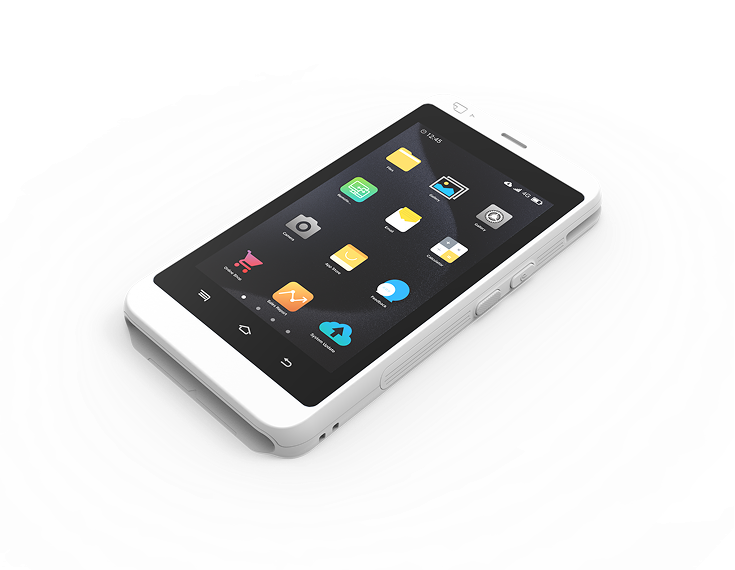

High-Resolution Touchscreen
480×800 TFT display presents crisp details and responsive touch interaction, enhancing the user experience.

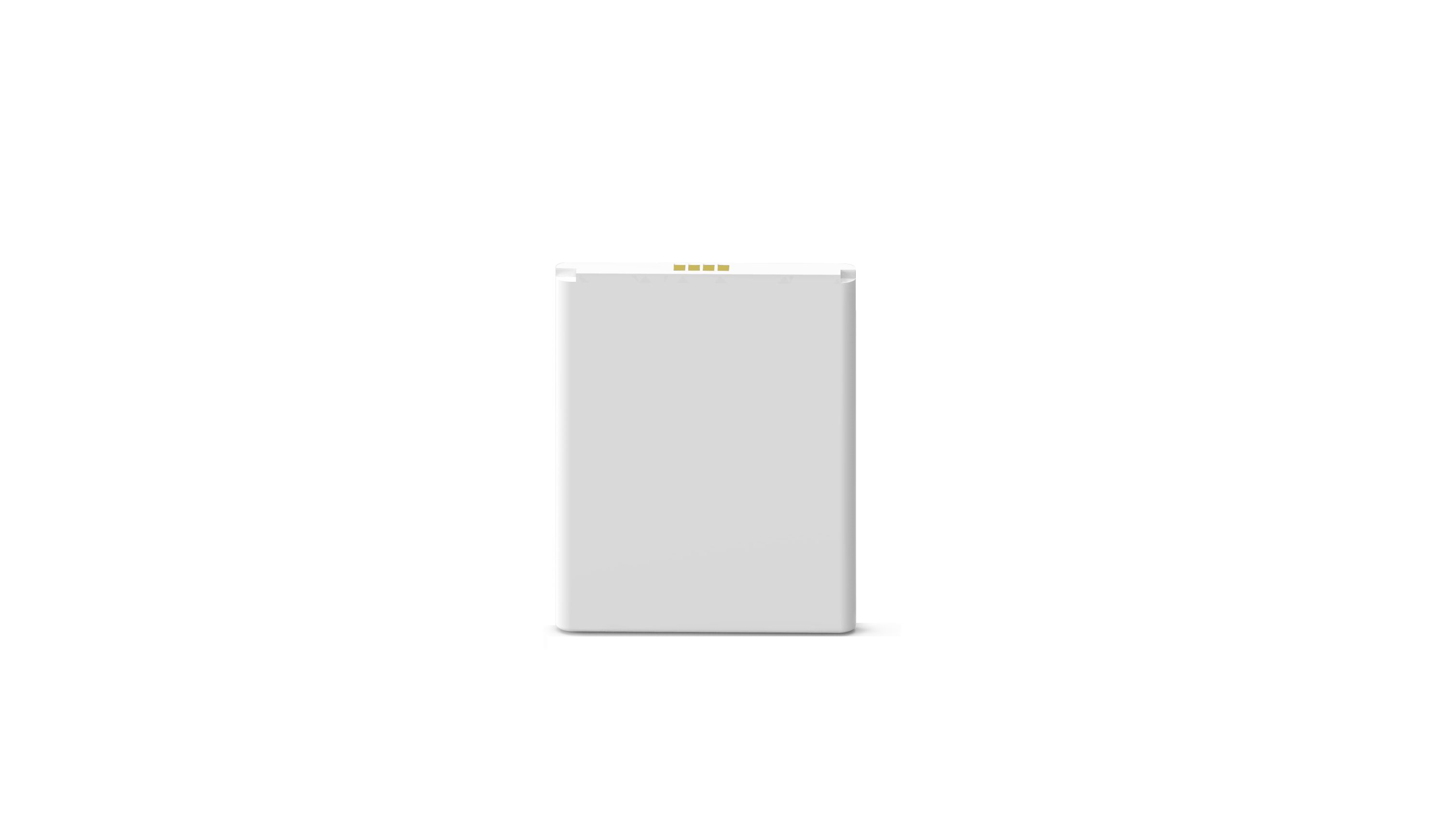

Long-Lasting Power Supply
The 2450mAh battery sustains prolonged operation, reducing interruptions from frequent charging.
Amplified Memory Options
2GB RAM + 8GB ROM
Standard
2GB RAM + 32GB ROM
Optional
Smart POS for Every Business Need.
Snappy Performance
Quad-core 2.0GHz processor ensures swift, seamless transactions every time.

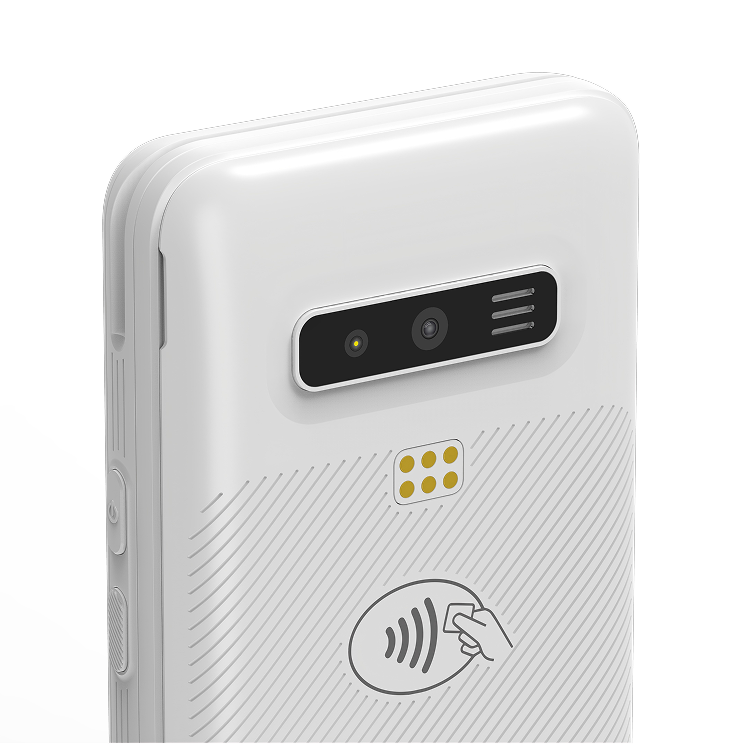

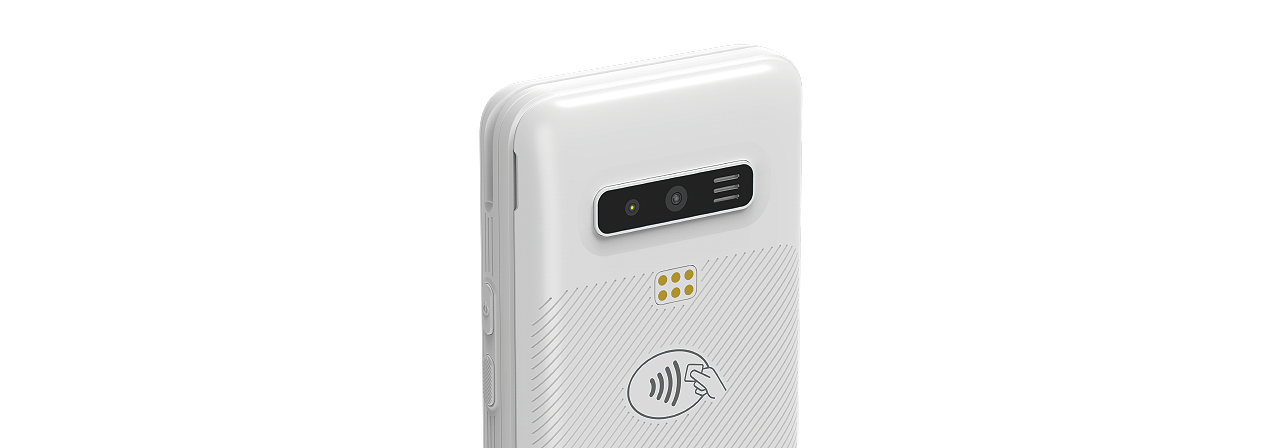

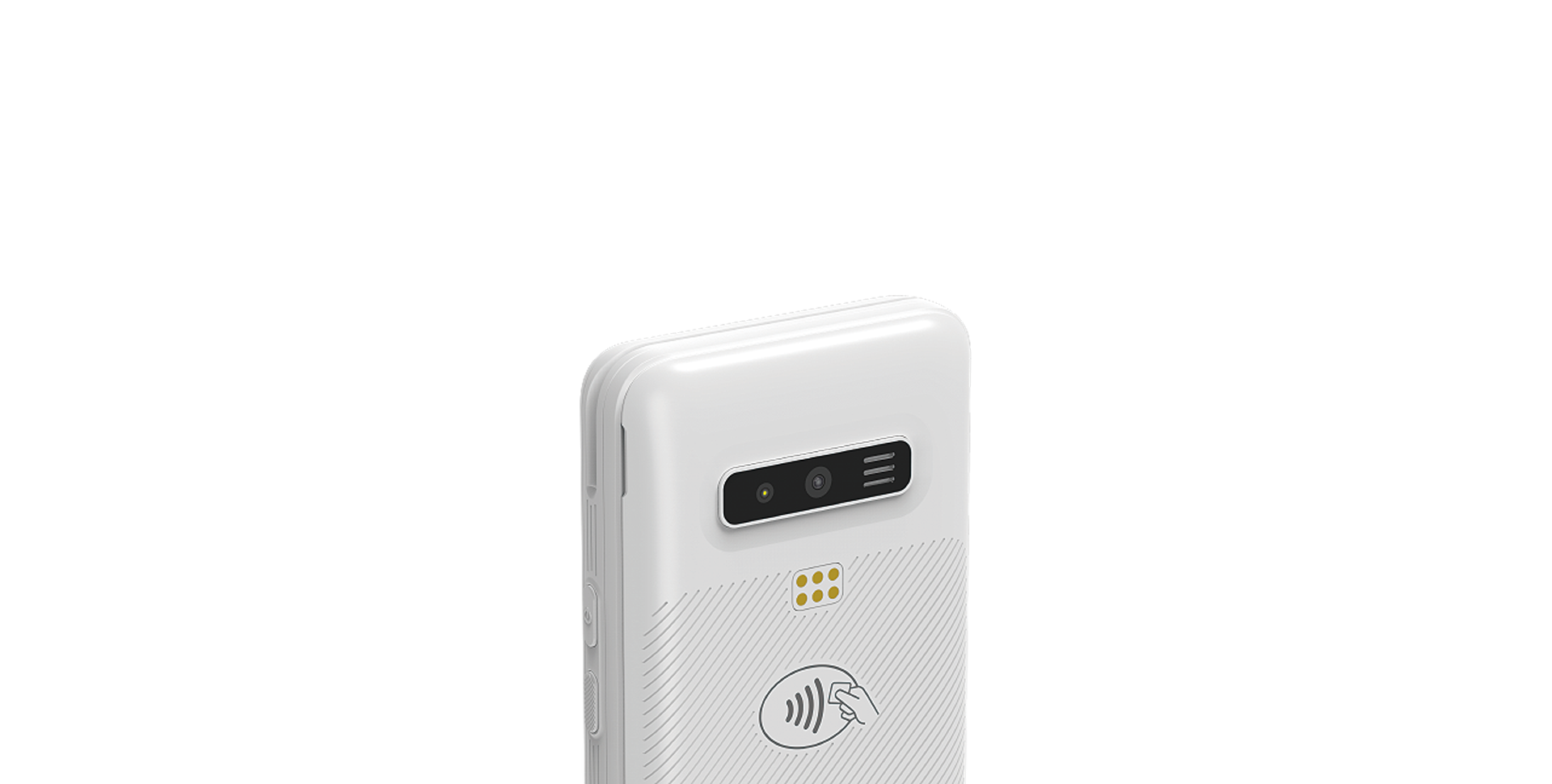

Integrated Camera
0.3M FF camera for quick barcode and QR code scanning, streamlining checkouts.
Rugged Drop Protection
Built tough to withstand drops up to 1 meter without a hitch.
Payment Methods

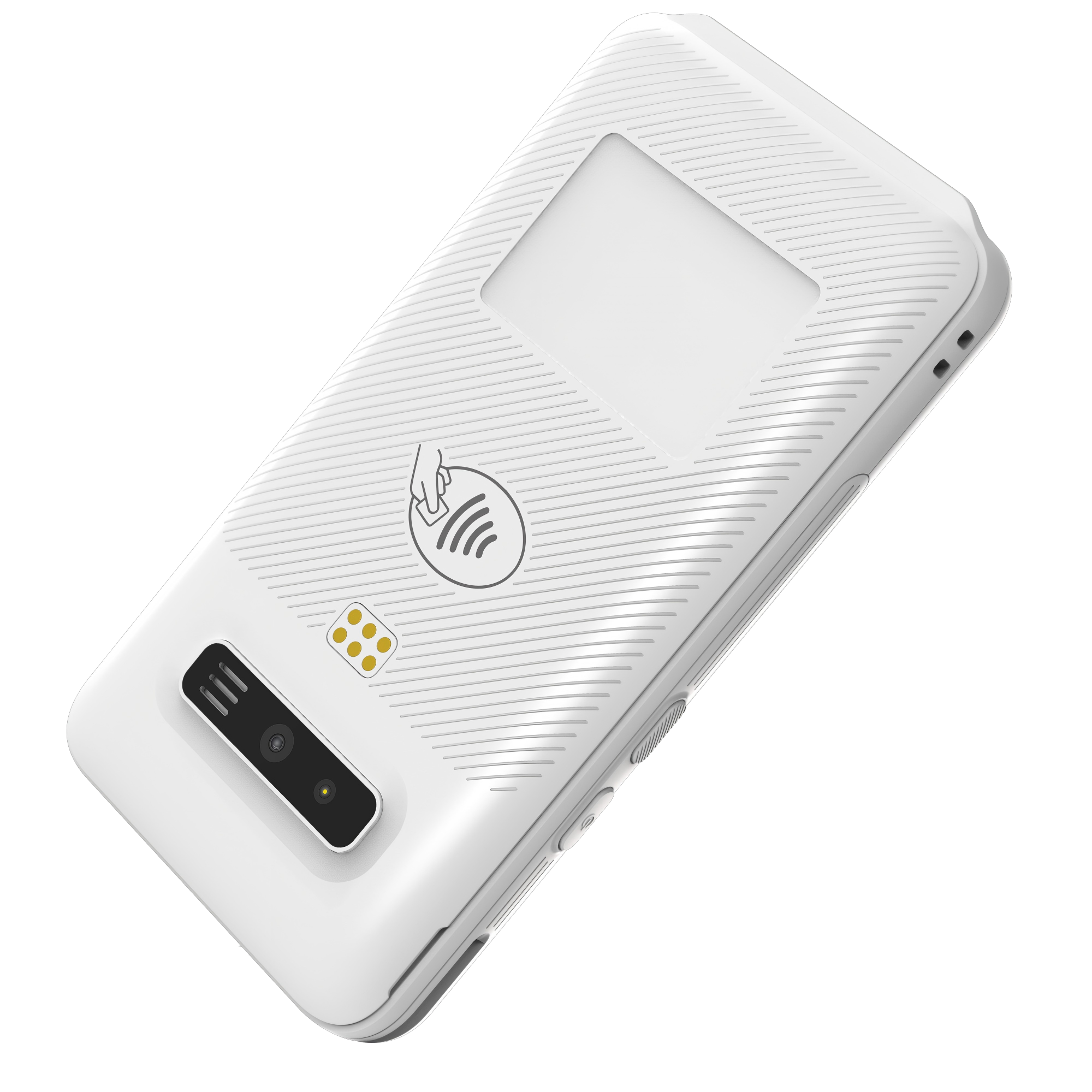

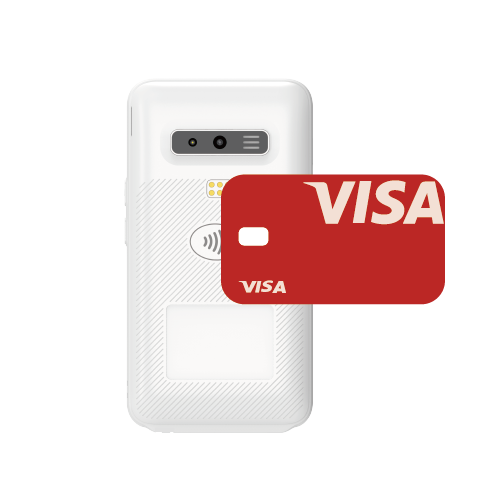

NFC Contactless

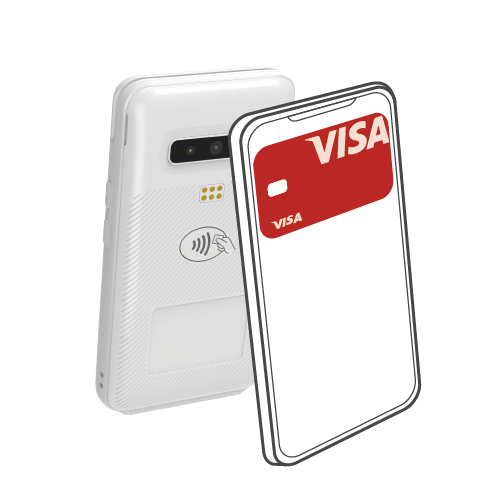

ApplePAY

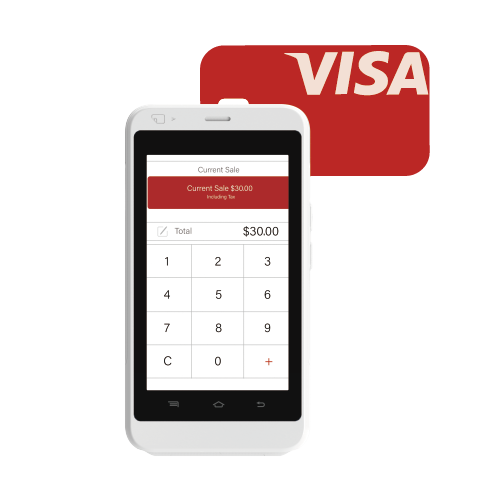

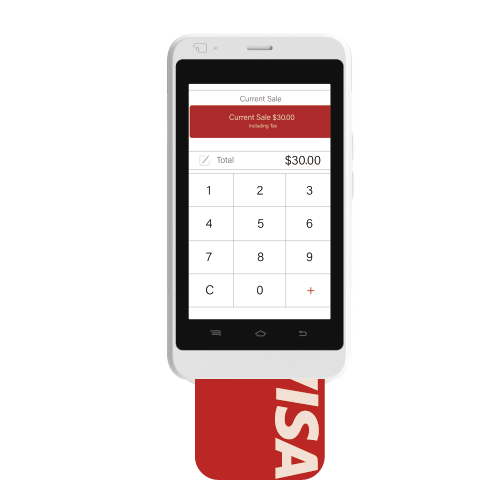

Magnetic Stripe
EMV Chip & PIN

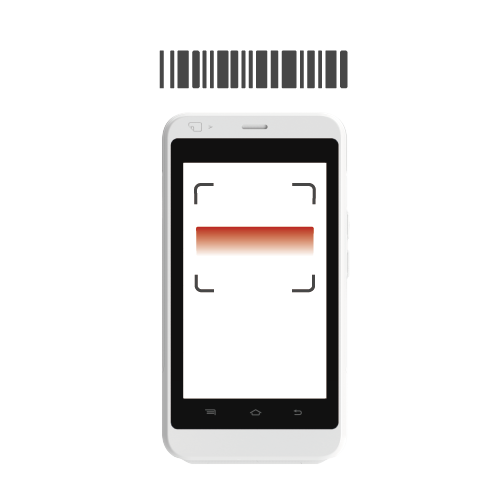

Barcode Scan

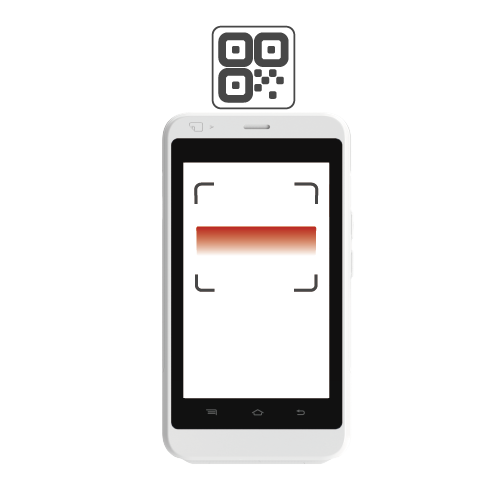

QR Code Scan
Technical Specifications
OS
Android 10
Processor
Application CPU: 4*A53@ 2.0GHz
Security CPU: 32-bit ARM 192MHz
Memory
2GB RAM, 8GB Flash
2GB RAM, 32GB Flash(Optional)
Display
4.0" 480*800 TFT Display
Capacitive Touchscreen
Communications
4G/3G/2G
WiFi: 802.11 a/b/g/n/ac, 2.4GHz&5G, Supports AP
Bluetooth® 5.0
Satellite Positioning
GPS | A-GPS | GLONASS
Contactless Card Reader
EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare
EMV Card Reader
EMV L1/L2, conforming to ISO 7816, compliant Class A, B, C
Magnetic Card Reader
Triple track, conforming to ISO 7810/7811/7813
Camera
Rear: 0.3M FF pixels
Audio
Speaker
Keys / Buttons
2 Keys: Power ON/OFF | Volume
Peripheral Ports
1 Type-C (OTG), 6 PIN POGO PIN

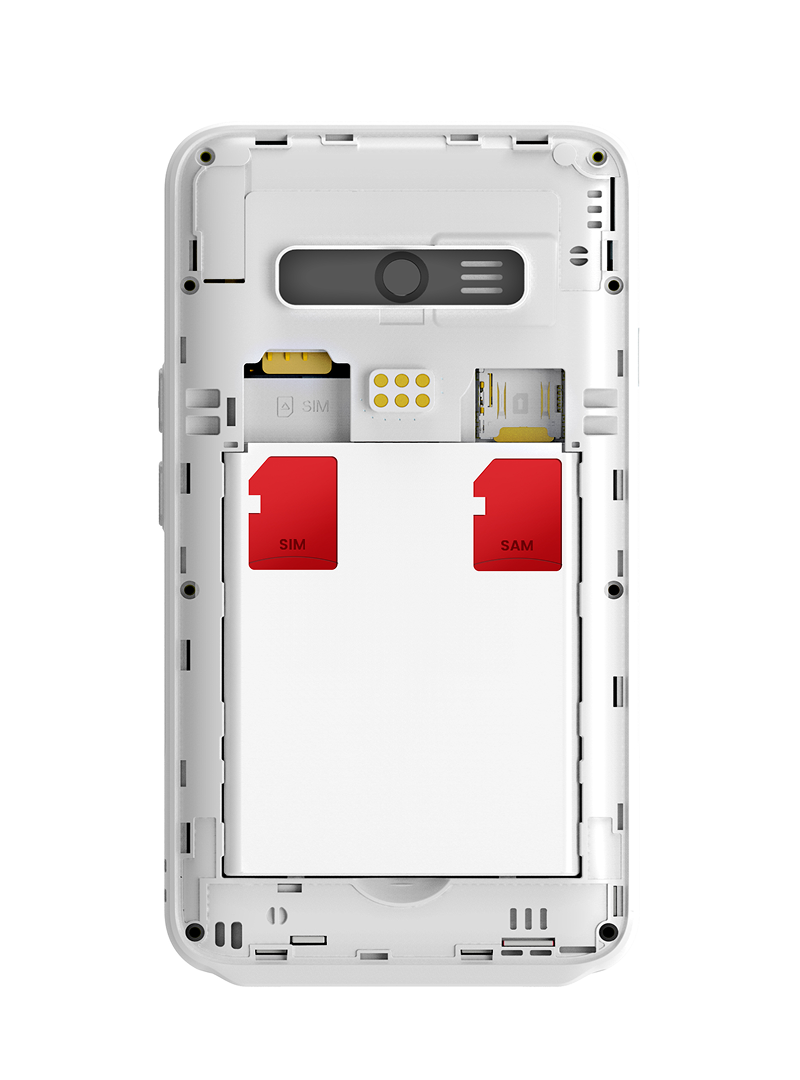

1 Nano SIM + 1 Mini SIM + 1 Mini SAM
1 Micro SD Card Slot, Supports Up To 32 GB
Battery
4.35V/2450mAh
Adapter/Power Supply
5.0V DC, 1.0A
Dimensions
129mm x 68.5mm x 17.5mm
177.4g (Including Battery)
Environmental Conditions
Operating temperature: 0°C~45°C
Storage temperature: -20°C~60°C
Relative humidity: 5%~95% (Non-condensing)
Certifcations
PCI PTS 5.x with SRED
EMV L1&L2, Contactless L1
Visa Paywave, MasterCard Paypass
Amex Expresspay, Discover D-PAS
Rupay qSPARC, PURE
PCI PIN Security, MasterCard TQM
CE, FCC, BQB, RoHS, WEEE
Standard Accessories
1 USB cable
Related Solutions
Bar
In bars, D20 keeps up with the rush - featuring a responsive touch screen and battery that lasts all shift.
Clothing Store
D20 powers through your busiest days – massive memory for endless inventory and a battery that never slows you down.
Pharmacy
In pharmacies, D20 helps pharmacists efficiently process prescriptions, and manage inventory, improving service for both pharmacists and patients.
Pastry
In pastry stores, D20 enables efficient point-of-sale transactions and inventory tracking, allowing staff to quickly process sales and assist customers with ease.
Accessories
-
USB Cable
-
Stickers
-
Lanyard
-

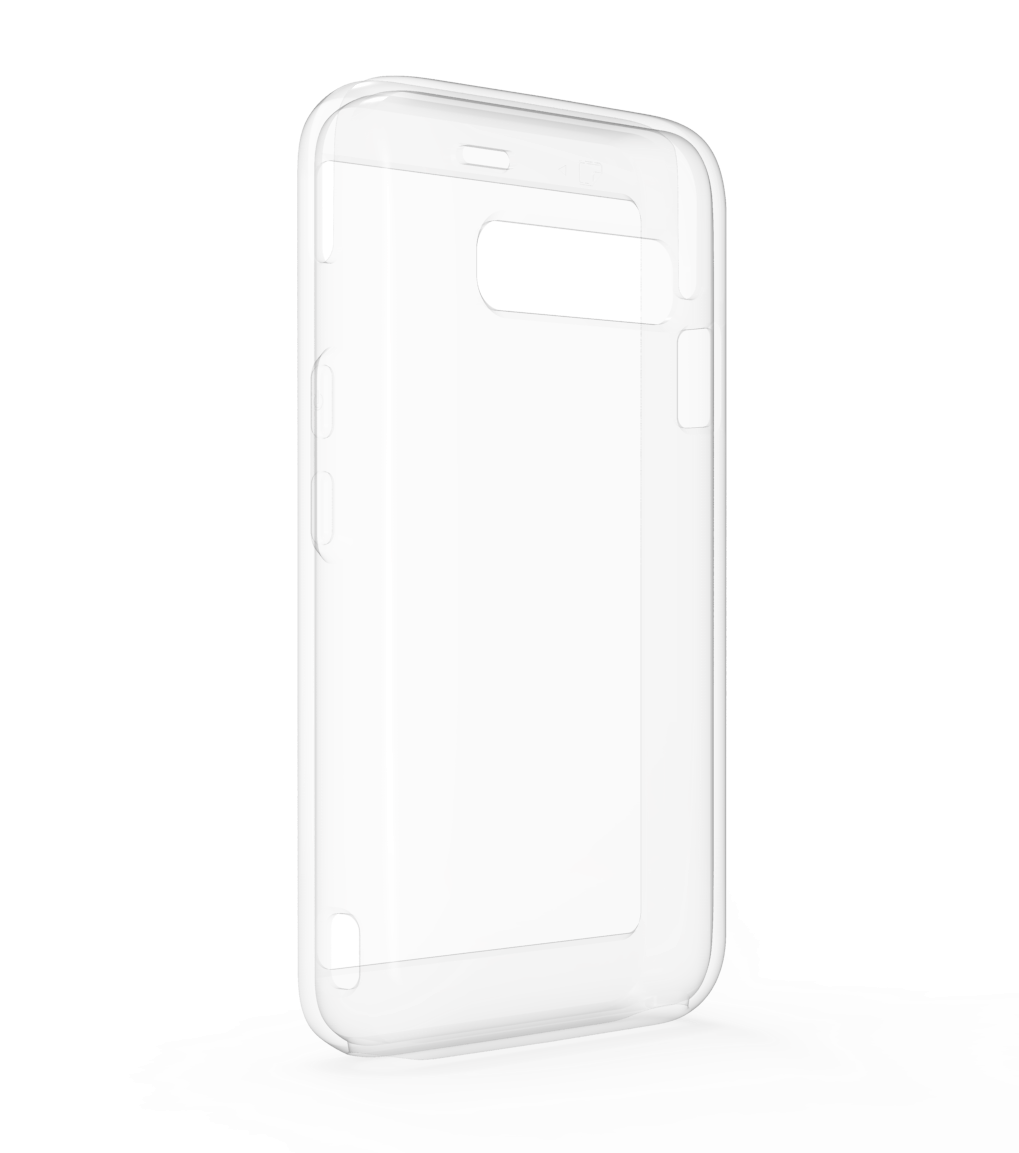

Rubber Case
-
Table Stand
