QPOS Plus PINPad

Secure Your Transactions with Every Key Press.

Practical Security at Your Fingertips.

Contact Experts

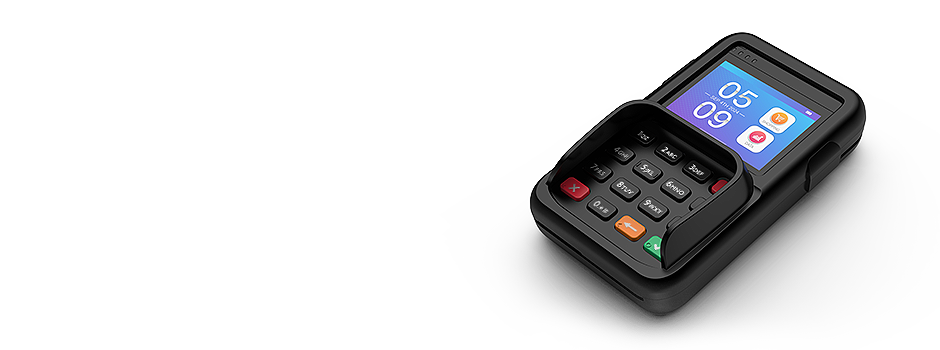

Small but Mighty

118mm x 68mm x 17mm, lightweight at 137g,
compact for flexible deployment
in all payment scenarios.

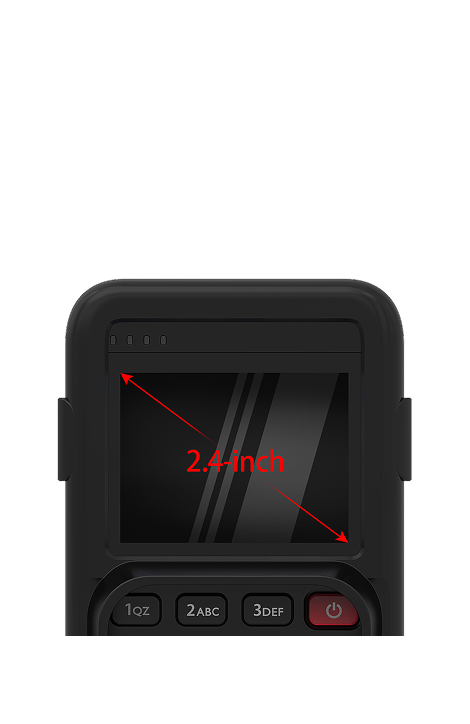

Clear Visual Display

2.4-inch 320*240 TFT display delivers sharp interface and intuitive payment interaction

Secure & Certified Transactions

PCI PTS 6.x & EMV certified, ensuring safe and encrypted payments.

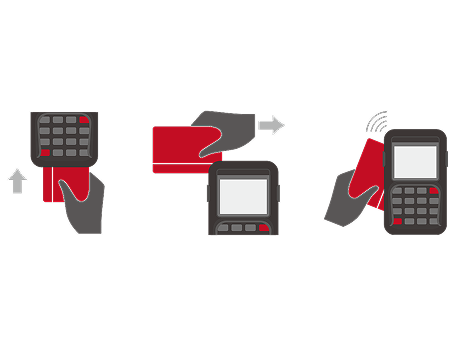

All-in-One Payment Support

Chip, swipe, tap—effortless payments with magstripe, EMV chip, and NFC contactless.

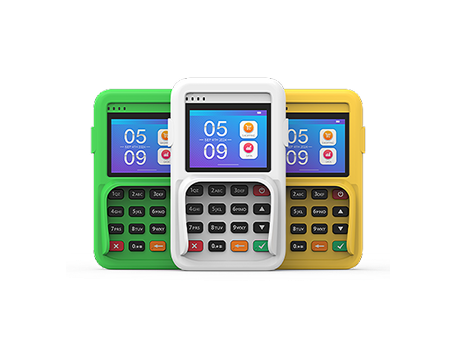

Stylish Customization

Choose a color, showcase your brand, and make a statement with a sleek, personalized design.

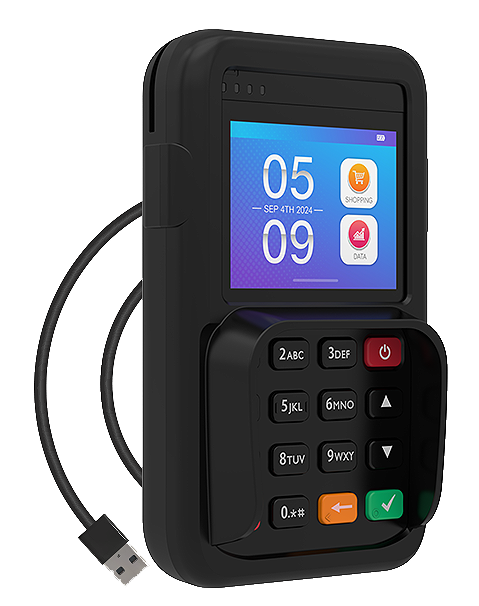

Convenient Connectivity

Type-C USB port for easy plug-and-play, stable data transmission, compatible with all POS equipment.

Expanded Highlights

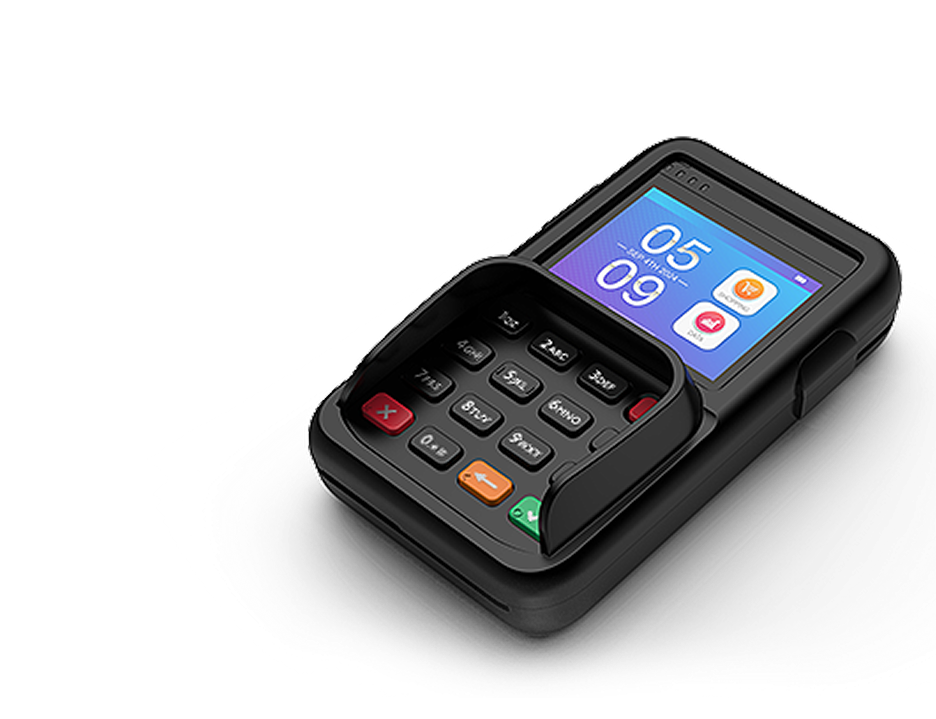

Compact
and
Lightweight

118mm x 68mm x 17mm, lightweight at 137g,
compact for flexible deployment in all payment scenarios.

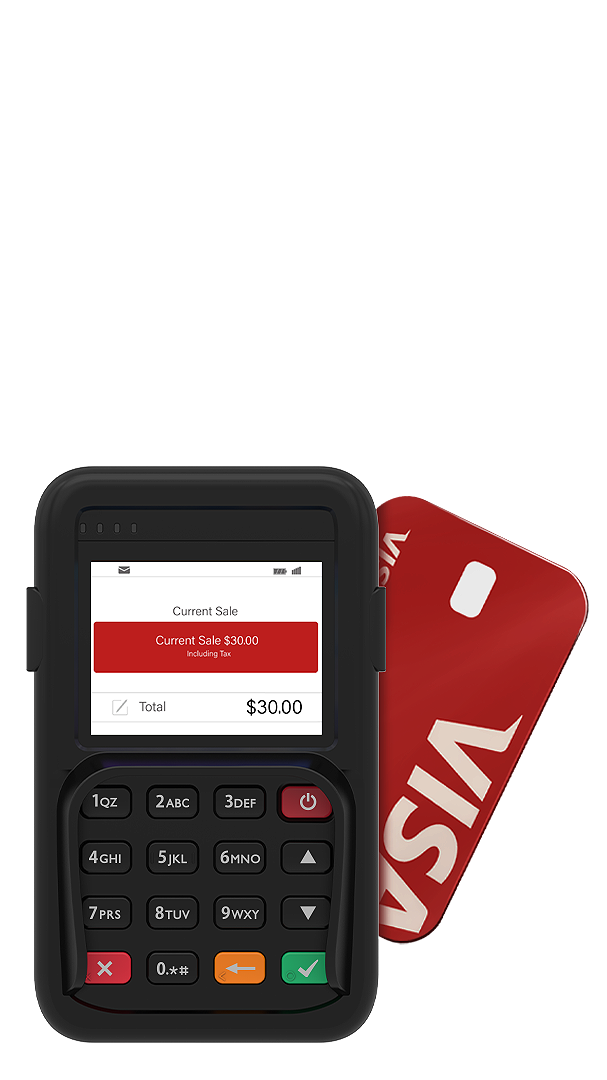

Versatile Payment Acceptance

Supports magstripe, EMV chip, and NFC contactless payments, providing maximum flexibility for businesses of all sizes.

3 in 1

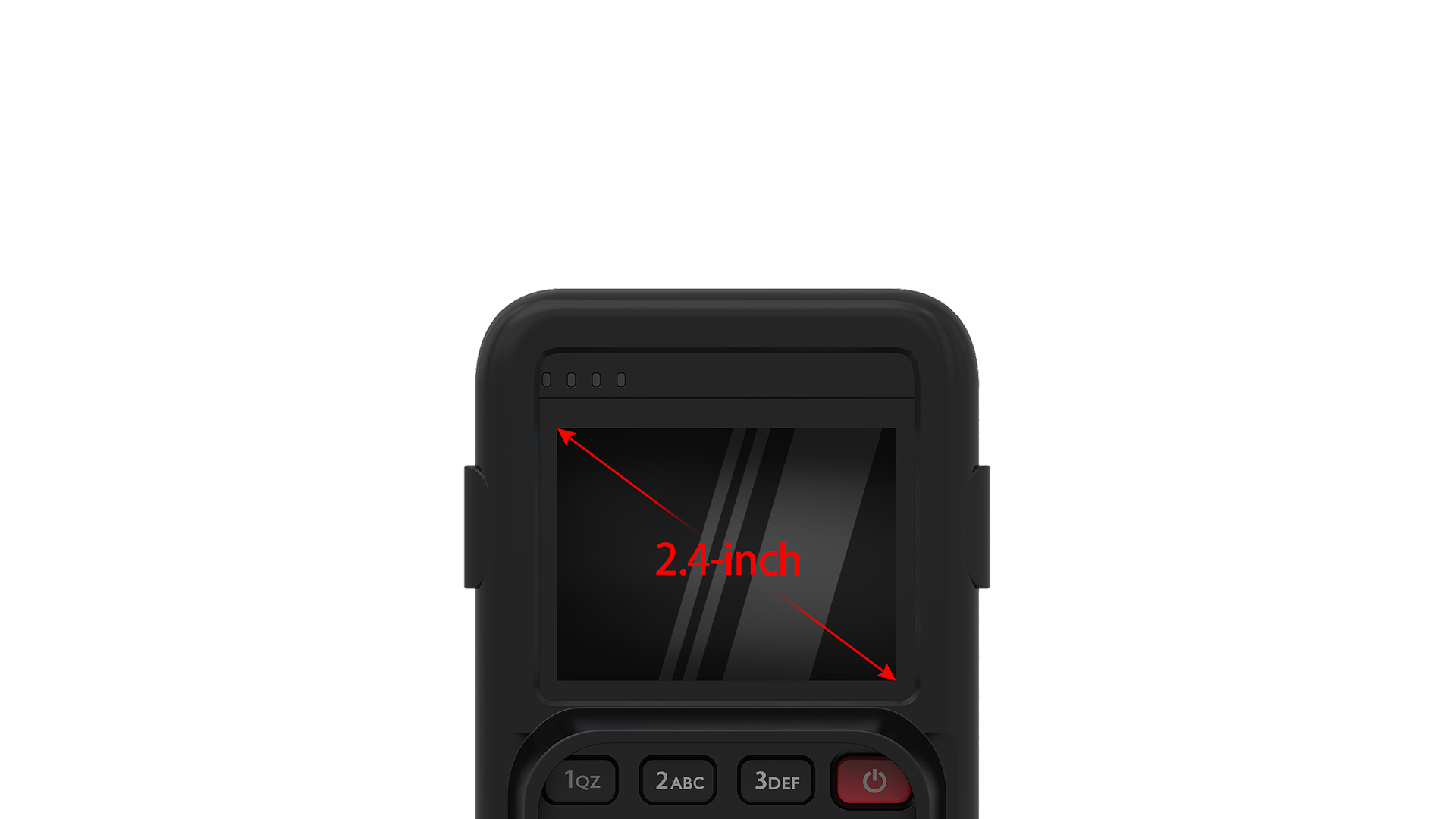

Intuitive User Experience

2.4-inch 320*240 TFT display delivers sharp interface and intuitive payment interaction

Seamless Connectivity

USB

Type-C USB port for easy plug-and-play, stable data transmission, compatible with all POS equipment

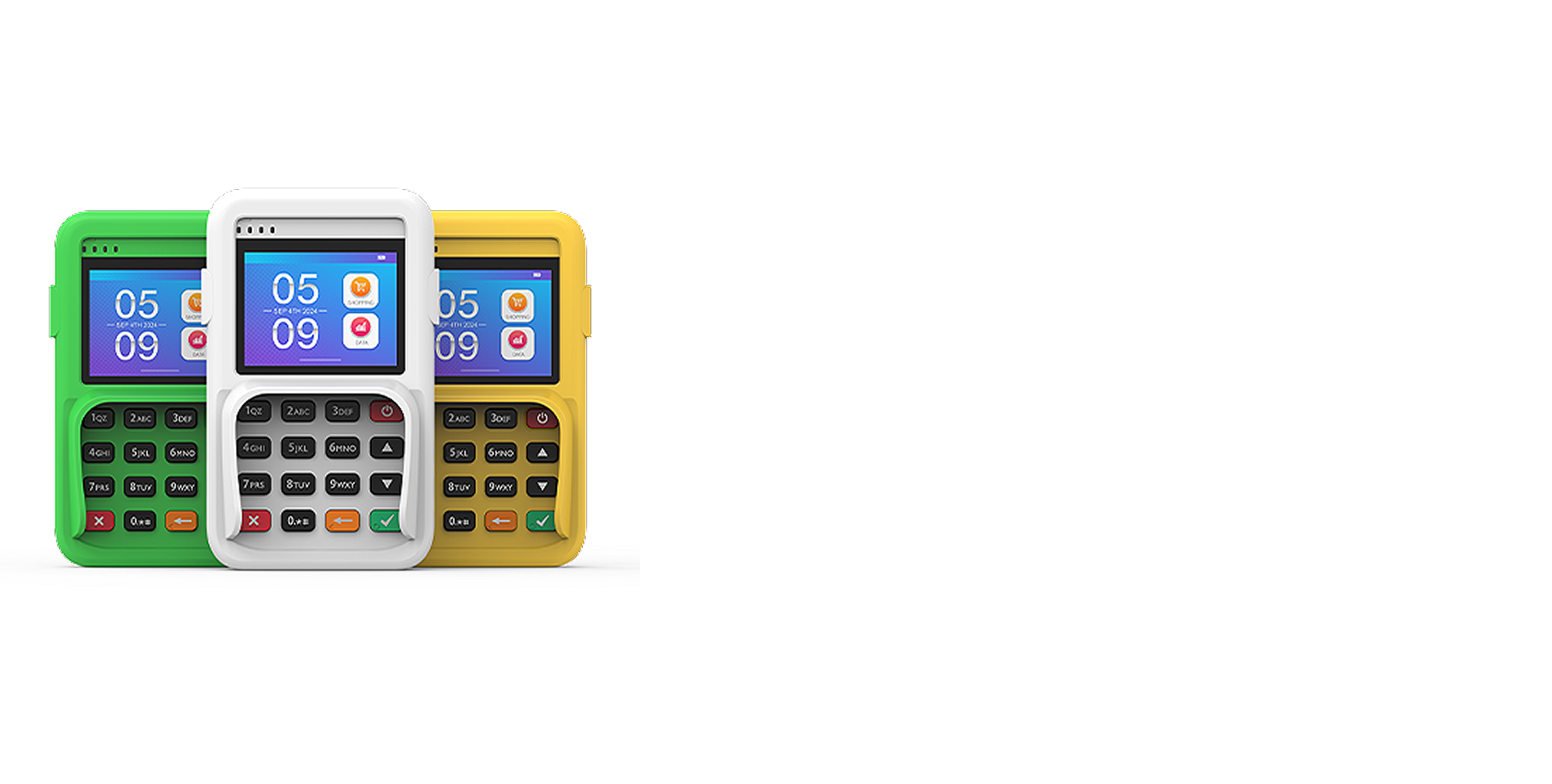

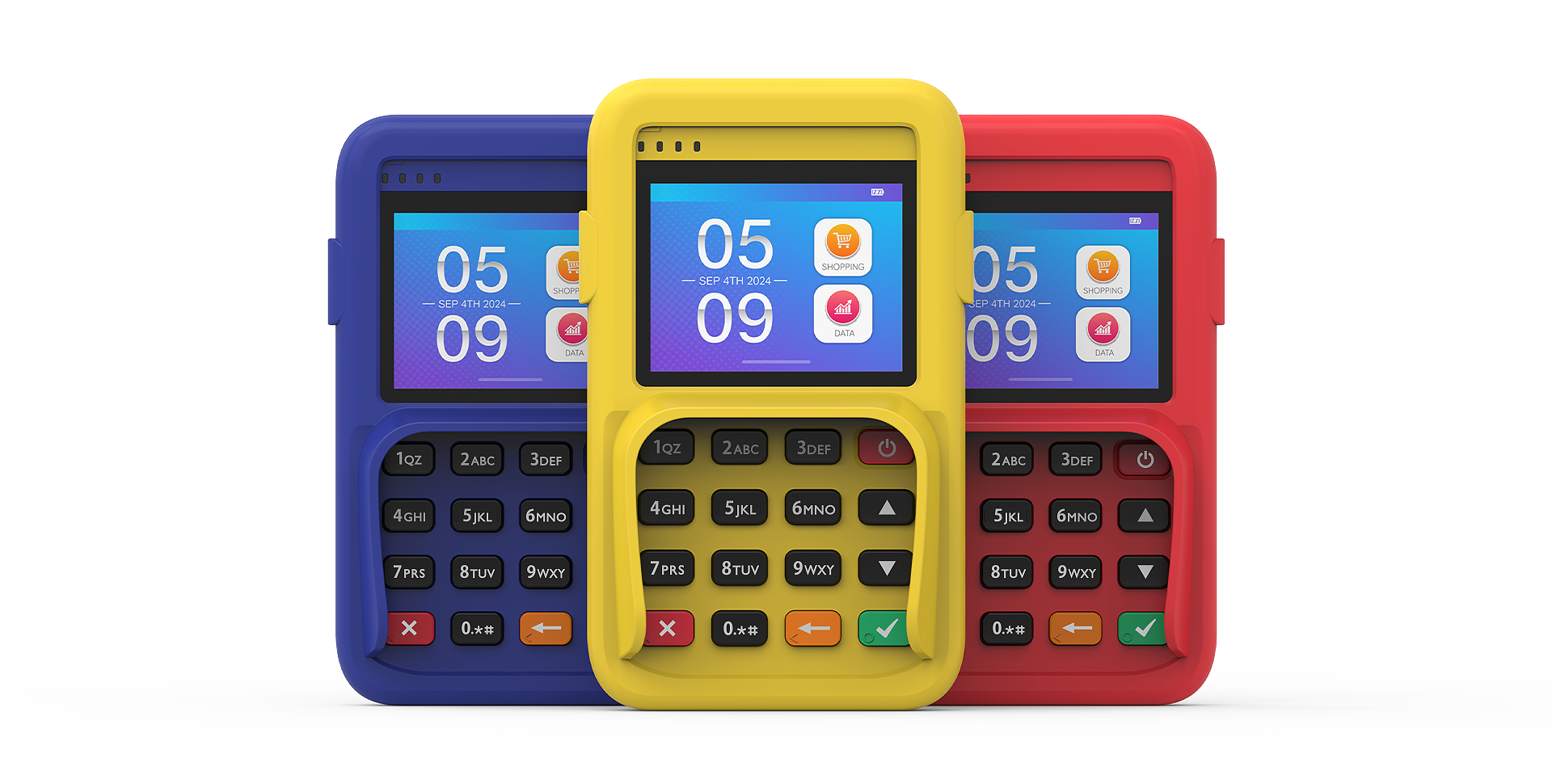

Brand Your Device

Own your Identity

Tailored for Your Brand

Customize the device with a color that represents your brand, ensuring a professional and recognizable look.

Technical Specifications

OS

Linux

Processor

ARM Cortex-A7 Dual Core 1.0 GHz

Memory

128MB RAM, 128M Flash

Display

2.4" 320 x 240 Pixels TFT Display

Indicator

LED status indicator & NFC LED indicator

Contactless Card Reader

EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare

Magnetic Card Reader

Triple track, conforming to ISO 7810/7811/7813, Bi-directional swiping

EMV Card Reader

EMV L1/L2, conforming to ISO 7816, compliant Class A, B, C

Audio

Built-in buzzer

Keys / Buttons

16 Keys: 0~9 | 5 Function Keys | 1 Power ON / OFF

Peripheral Ports

Type-C USB

Battery

3.7V/750mAh

Adapter/Power Supply

5V DC, 1A

Dimensions

118mm x 68mm x 17mm

137g (Including Battery)

Environmental Conditions

Operating temperature: 0°C~45°C

Storage temperature: -20°C~60°C

Relative humidity: 5%~95% (Non-condensing)

Certifcations

PCI PTS 6.x SRED,

EMV L1&L2, Contactless L1,

Visa Paywave, MasterCard Paypass,

Amex Expresspay, Discover D-PAS,

Rupay qSPARC, UnionPay QUICS, PURE,

PCI PIN Security, MasterCard TQM,

CE, FCC, RoHS, WEEE

Standard Accessories

1 USB cable

QPOS Plus Pinpad.pdf
2194.25KB

Cloud Services

Accessories

Optional

Stickers
Lanyard
Table Stand

Certifications

Supports and Downloads

FAQ

What security certification does the QPOS Plus PINPad hold?

It is certified with PCI PTS6.x with SRED, ensuring the highest level of security for every financial transaction.

Does the QPOS Plus PINPad have status indicator LEDs?

Yes, it is equipped with an LED status indicator and an NFC LED indicator for clear visual status updates.

What environmental humidity range is the QPOS Plus PINPad suitable for?

It can operate in a relative humidity range of 5% ~ 95% (non-condensing), adapting to various working environments.

What are the dimensions and weight of the QPOS Plus PINPad (including battery)?

It measures 118mm x 68mm x 17mm and weighs 137g with the battery included, featuring a compact and lightweight design.

Does the QPOS Plus PINPad have any audio features?

Yes, it has a built-in buzzer that provides audio prompts for transaction status and operations.

What storage and memory configuration does the QPOS Plus PINPad have?

It is built with 128MB RAM and 128MB Flash storage, providing sufficient space for transaction data and operation.

What processor powers the QPOS Plus PINPad?

The device is driven by an ARM Cortex-A7 dual-core processor, ensuring smooth and efficient transaction processing.

What payment methods does the QPOS Plus PINPad support?

It supports EMV contact and contactless payments, covering mainstream card payment types for secure transactions.

What kind of display does the QPOS Plus PINPad feature?

It comes with a 2.4-inch TFT display with a resolution of 320*240 for clear visual feedback during transactions.

What ports does the QPOS Plus PINPad have for connectivity?

The QPOS Plus PINPad is equipped with a Type-C USB port for all peripheral and connectivity needs.
