Expanded Highlights
Expanded

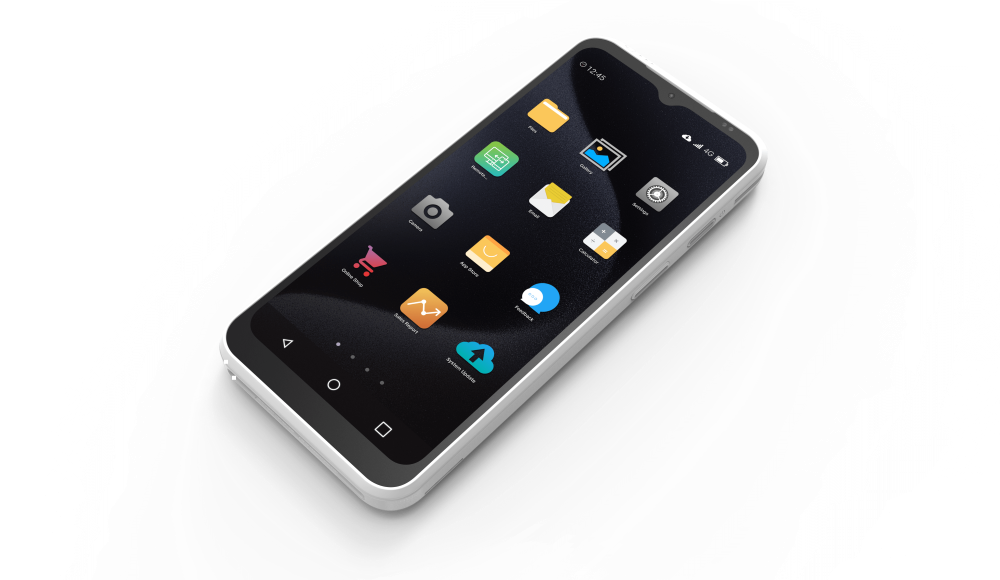

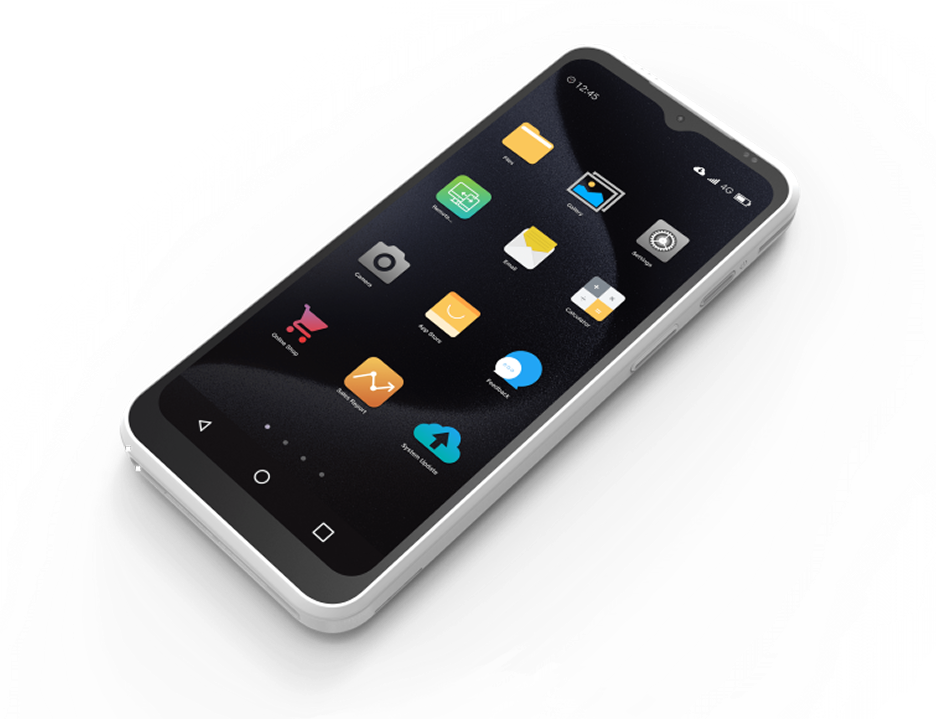

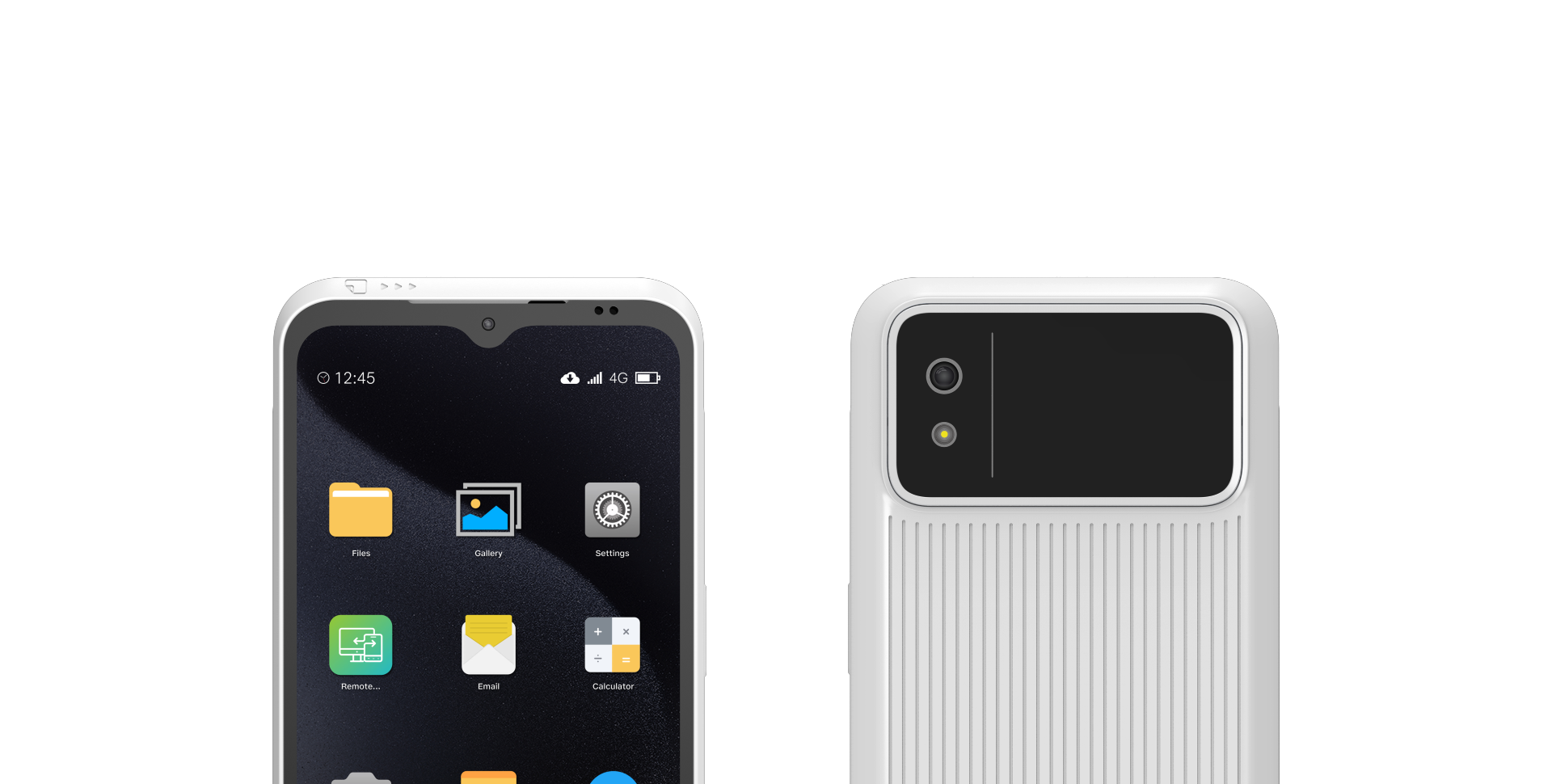

Touch-Screen
Display
6.5” 1600*720 TFT IPS Display brings unparalleled clarity and comfort to your interactions, enhancing your visual experience.

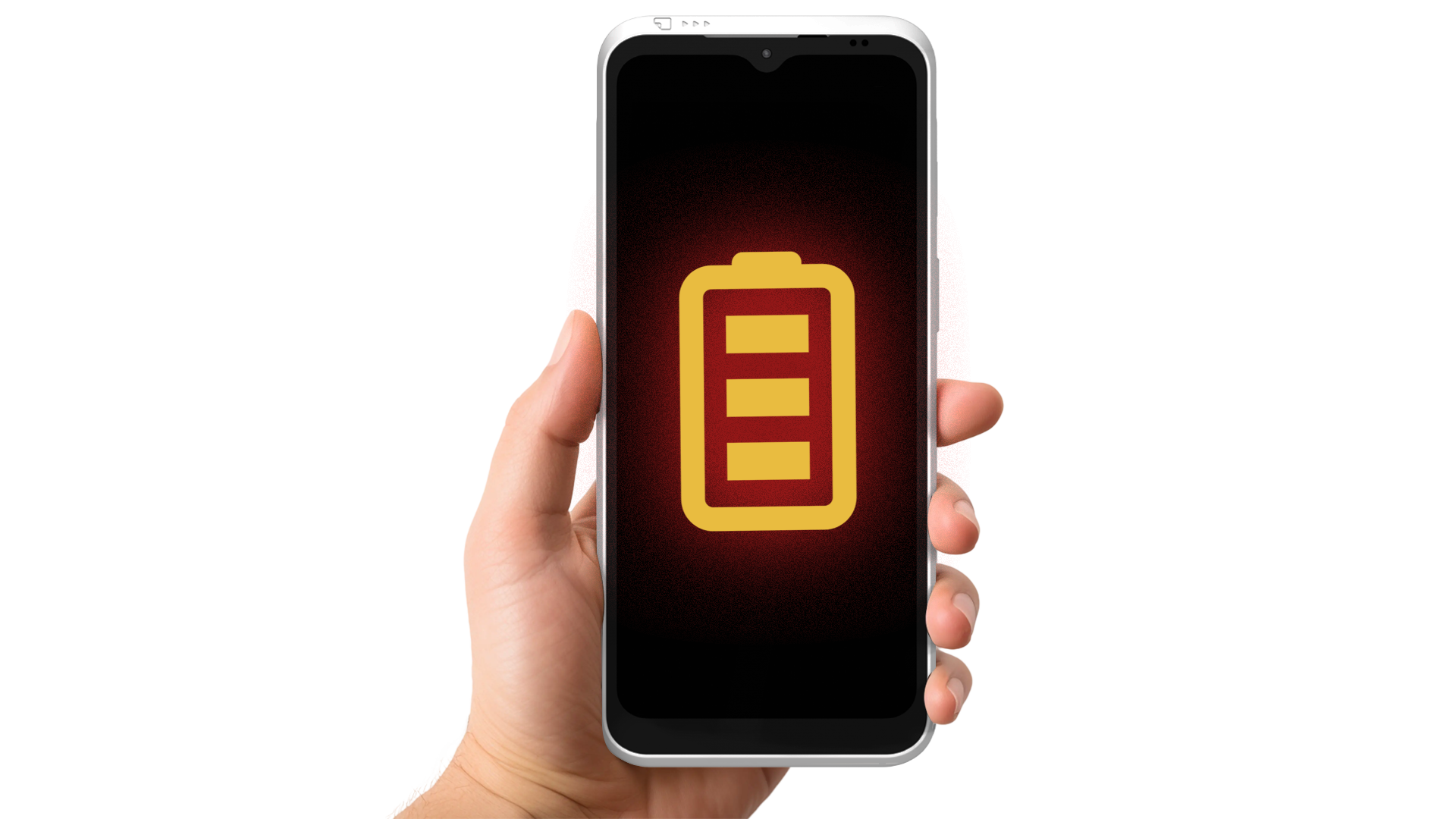

Robust Battery
The impressive 3250mAh 3.8v battery extends the workday duration.

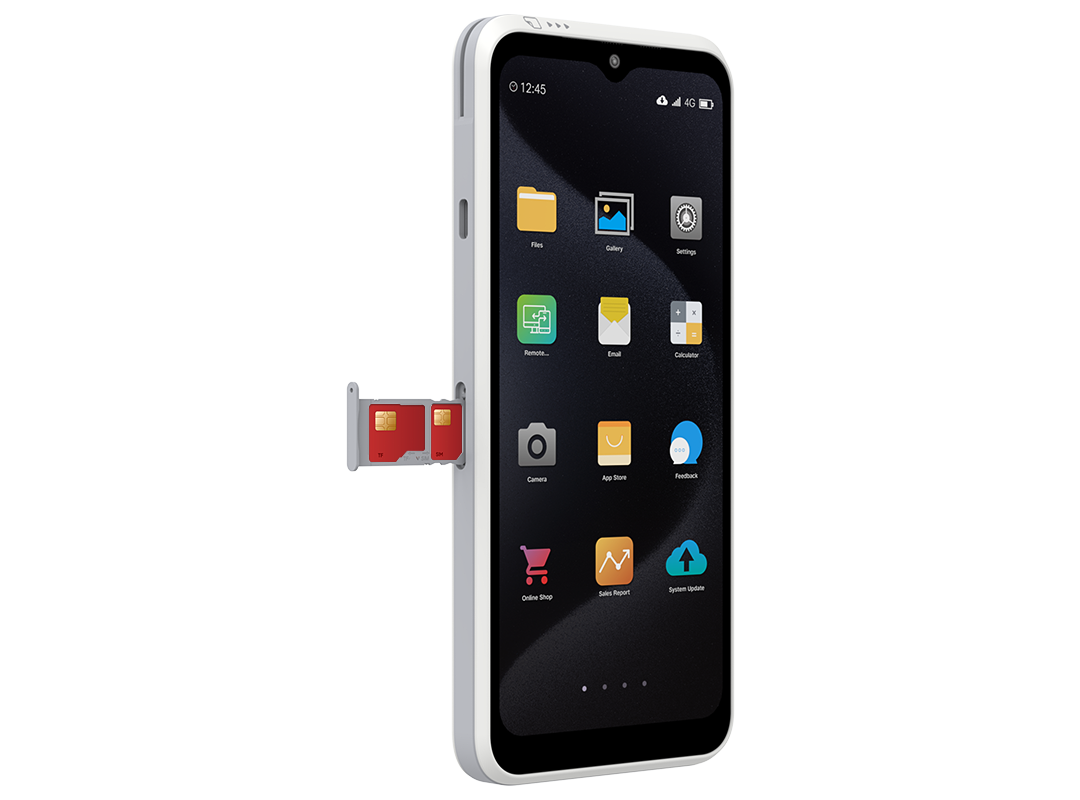

Amplified Memory Options
2GB RAM + 32GB ROM
Standard
3GB RAM + 32GB ROM
Optional
Smooth & high energy
Powerful Performance
Powerful Performance
Quad-core 2.0GHz processor enables fast transaction handling and improved productivity.

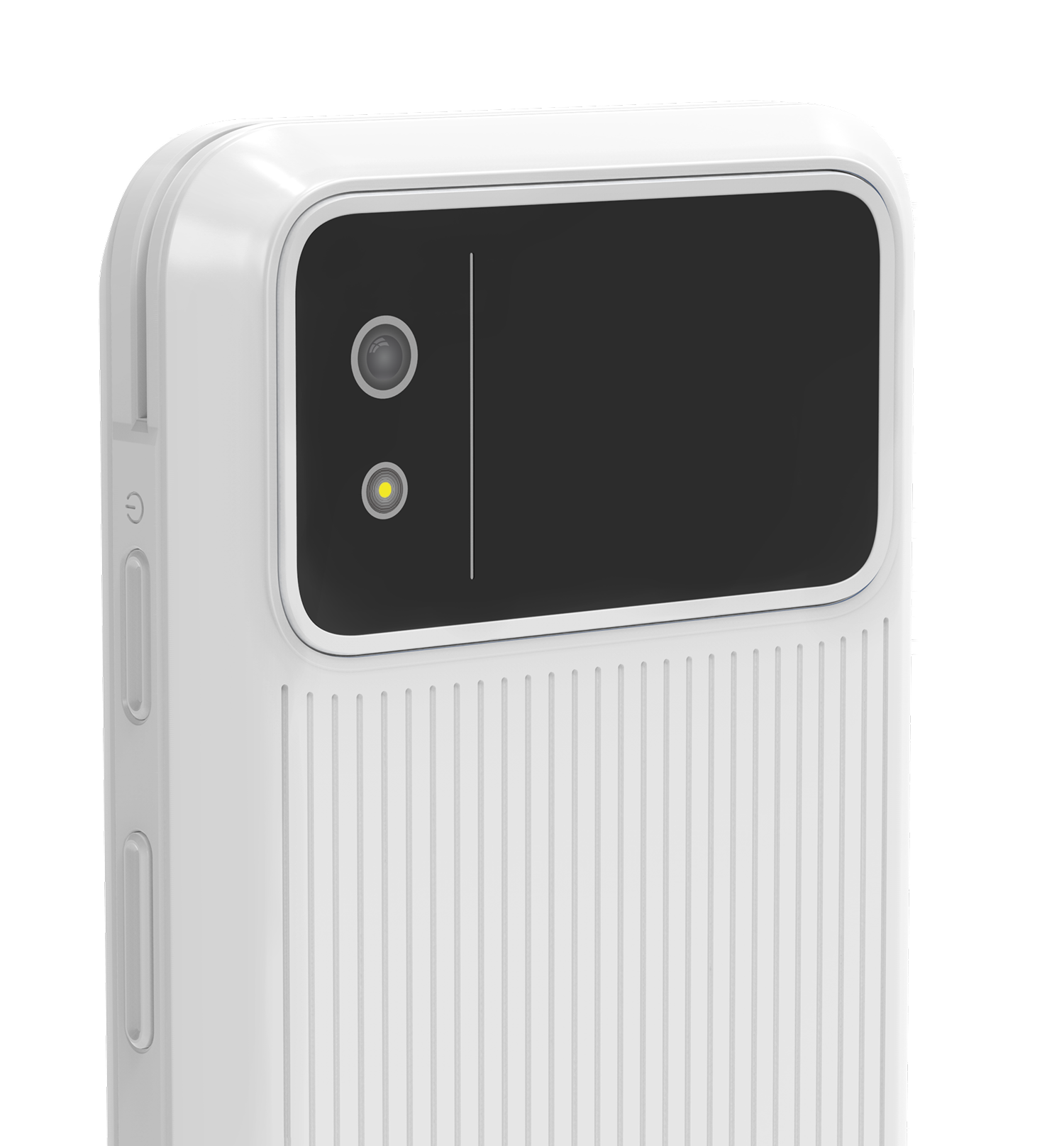

Integrated Camera
2MP camera for quick barcode and QR code scanning, streamlining
Enhanced Anti-Drop Protection
Enhanced durability for withstanding drops up to 1 meter.
Payment Methods

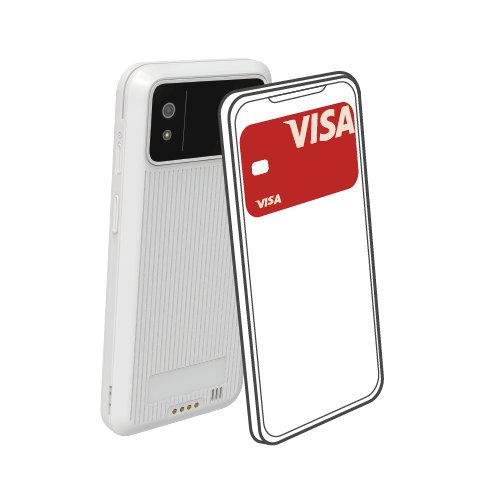

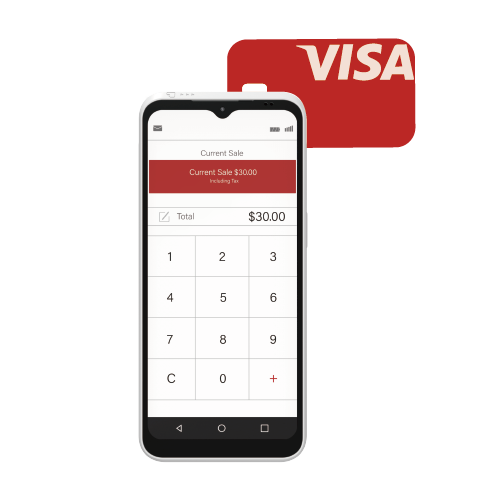

NFC Contactless
ApplePAY

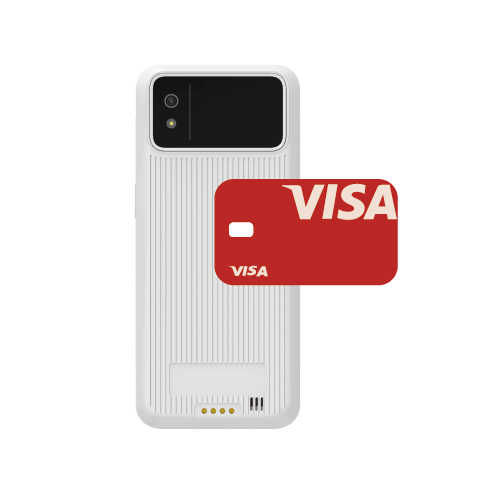

Magnetic Stripe

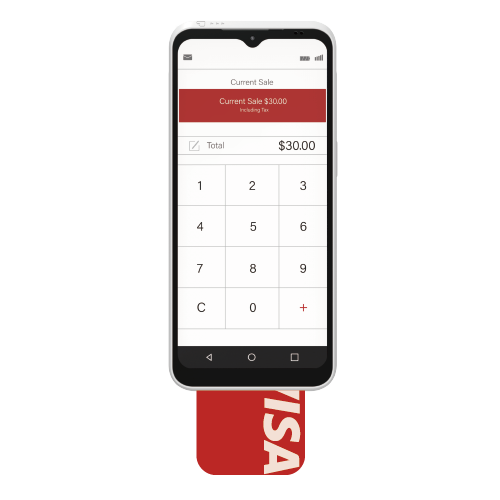

EMV Chip & PIN

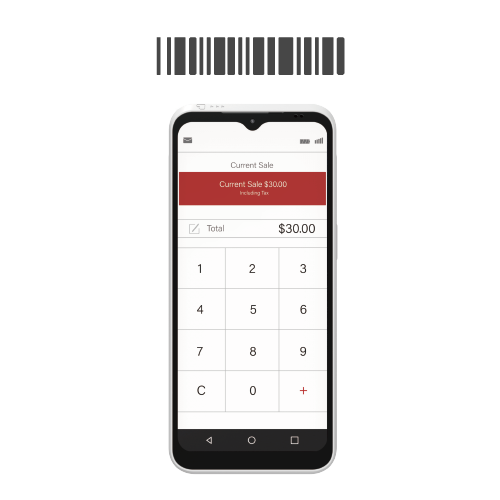

Barcode Scan

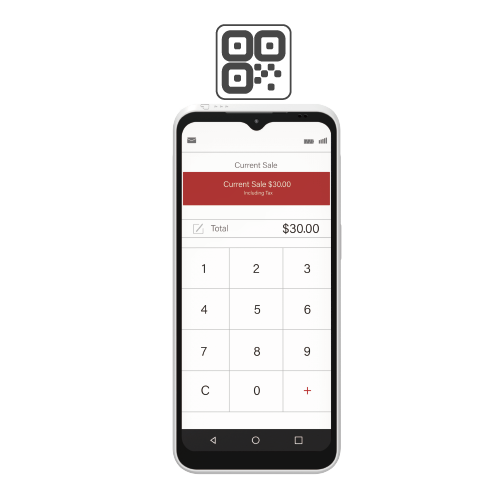

QR Code Scan
Technical Specifications
OS
Android 14
Contactless Card Reader
EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare
Dimensions
171.5mm x 77.8mm x 15.9mm, 279.1g (Including Battery)
Environmental Conditions
Operating temperature: 0°C~45°C
Storage temperature: -20°C~60°C
Relative humidity: 5%~95% (Non-condensing)
Peripheral Ports
1 Type-C (OTG), 4 PIN POGO PIN

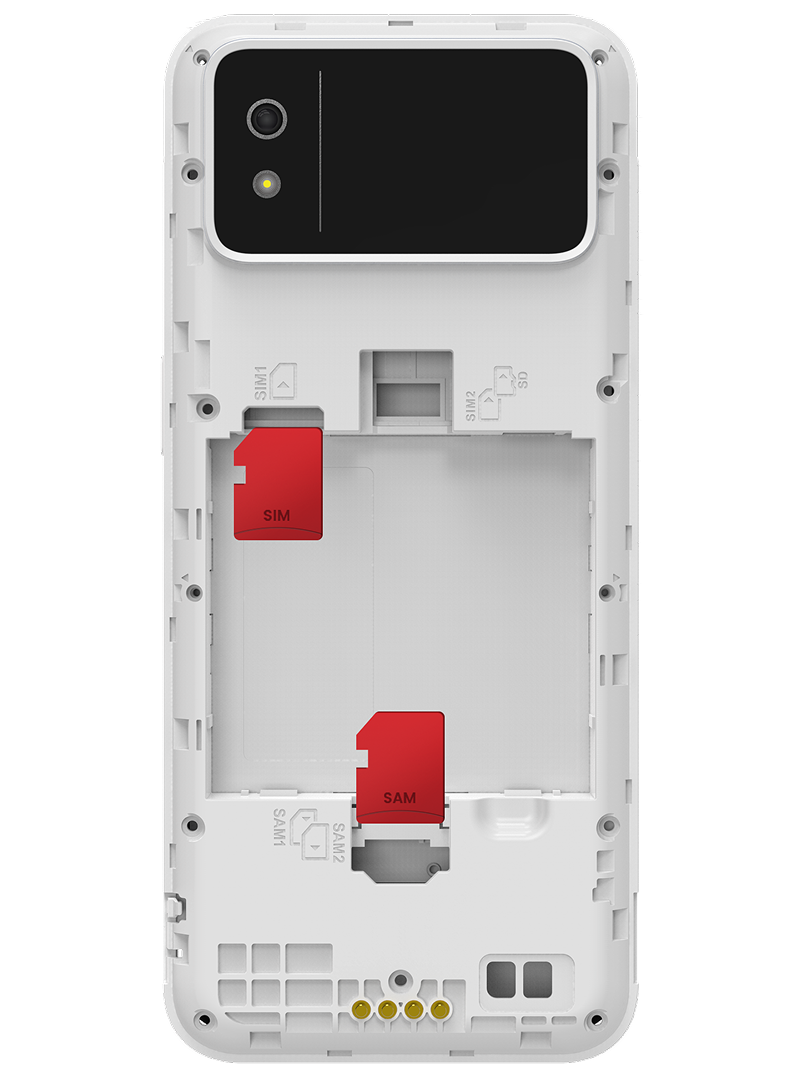

2 Nano SIM(option esim) + 1 Mini SIM(option 2*SAM)
1 Micro SD Card Slot, Supports Up To 256 GB
Battery
3.8V/3250mAh
Adapter/Power Supply
Input: 100-240V AC, 50Hz/60Hz
Output: 5.0V DC, 2.0A
Certifcations
PCI PTS 6.x with SRED
EMV L1&L2, Contactless L1
Visa Paywave, MasterCard Paypass, Amex Expresspay, MIR
Discover D-PAS, PCI PIN Security, MasterCard TQM
CE, FCC, RoHS
Keys / Buttons
2 Keys: Power ON/OFF | Volume
EMV Card Reader
EMV L1/L2, conforming to ISO 7816, compliant Class A, B, C
Processor
AP: 8*A53 (4*A53@2.0GHz + 4*53@1.5GHz)
SP: 32-bit ARM 192MHz
Magnetic Card Reader
Triple track, conforming to ISO 7810/7811/7813
Audio
1 Mic, 1 Speaker, 1 Receiver, 1 Vibrator
Camera
Rear Camera: 5M AF or 2M FF
Front Camera: 2M FF
Satellite Positioning
GPS | A-GPS | GLONASS | BEIDOU
Communications
4G/3G/2G
WiFi: 802.11 a/b/g/n/ac, 2.4GHz&5G, Supports AP
Bluetooth® 5.0
Display
6.5" 720*1600 TFT IPS Display
Capacitive Touchscreen
Memory
2GB RAM, 32GB Flash
3GB RAM, 32GB Flash(Optional)
Standard Accessories
1 Power adapter, 1 USB cable
Accessories
-
Power Adapter
-
USB Cable
-
Stickers
-
Lanyard
-
Table Stand
-
Rubber Case
Certifications
