QPOS Plus

Small but Mighty

118mm x 68mm x 17mm, lightweight at 156g,
built for effortless, on-the-go payments.

Fast & Flexible Connectivity

Stay online with 4G, 2G, and WiFi (2.4GHz) for seamless transactions anytime.

Secure & Certified Transactions

PCI PTS 6.x & EMV certified, ensuring safe and encrypted payments.

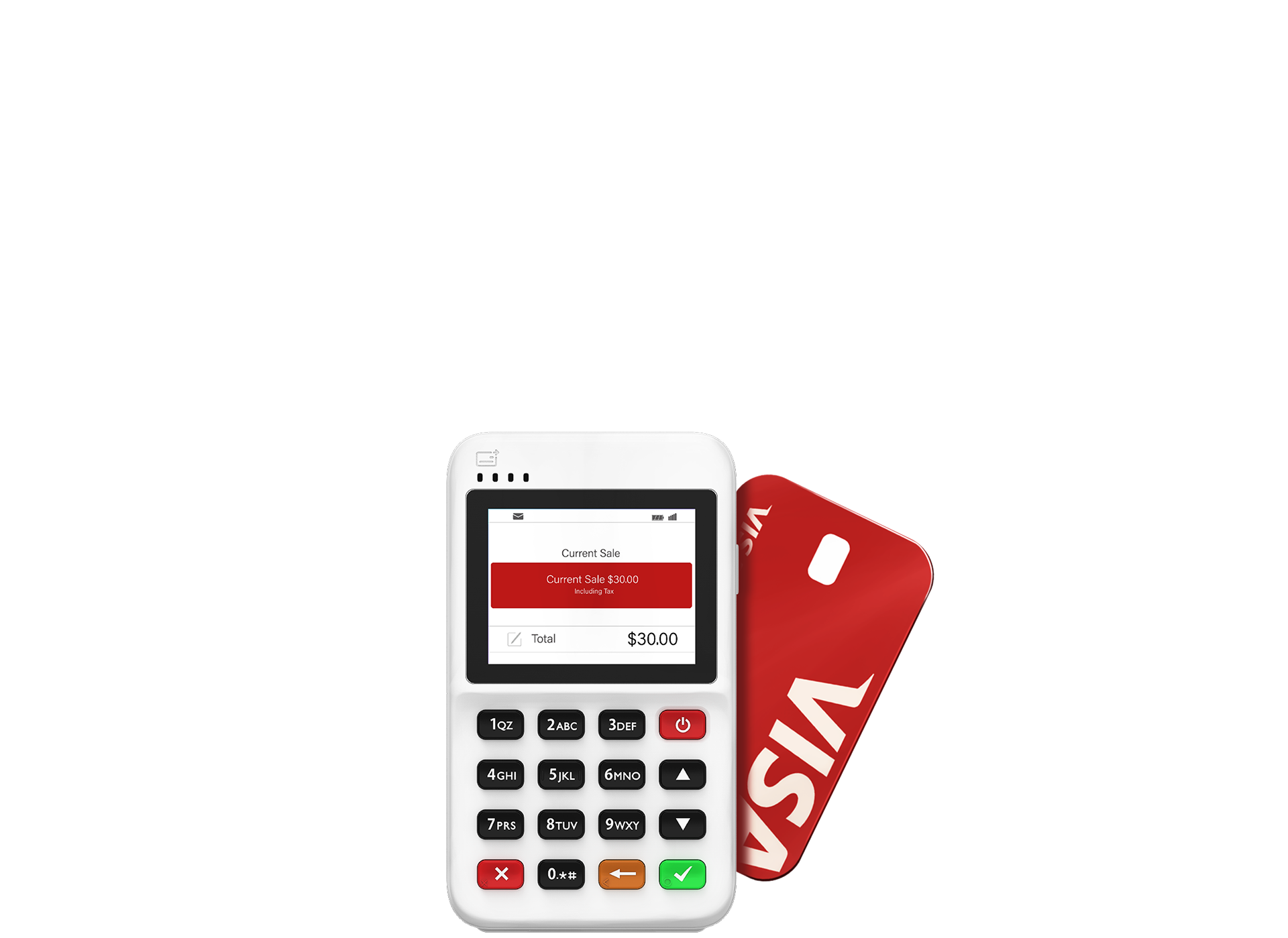

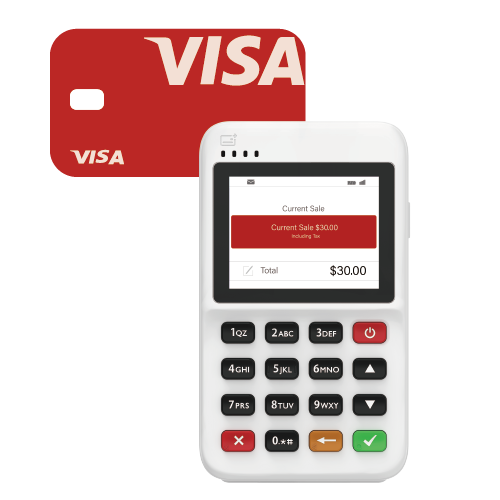

All-in-One Payment Support

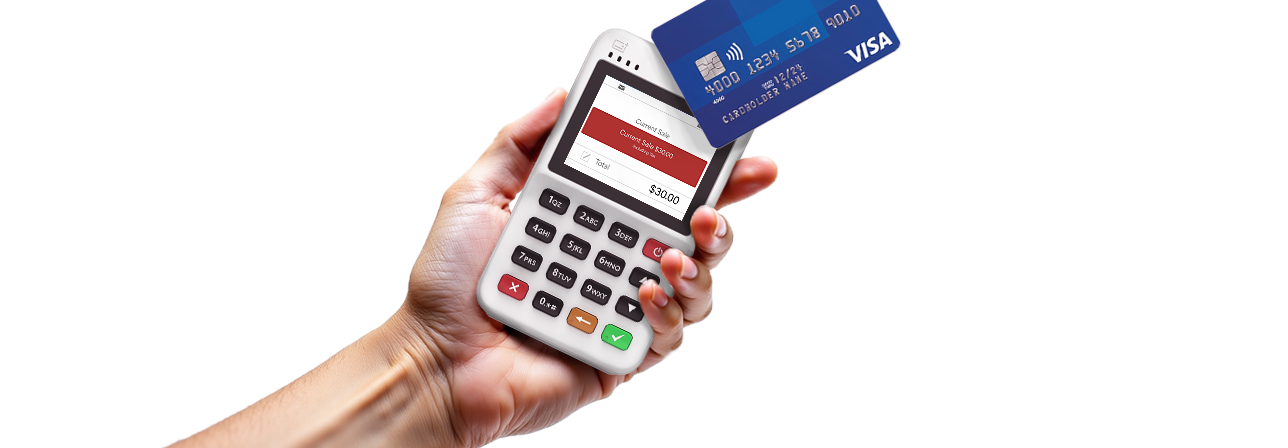

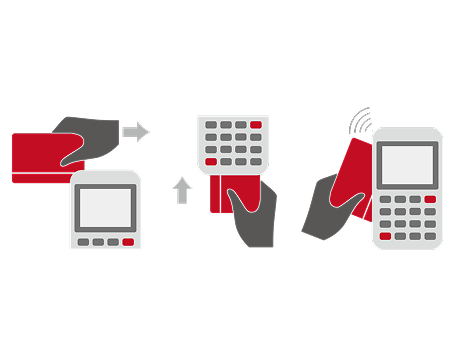

Chip, swipe, tap—effortless payments with magstripe, EMV chip, and NFC contactless.

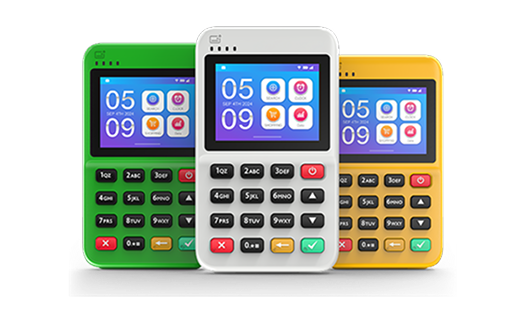

Stylish Customization

Choose a color, showcase your brand,
and make a statement with a sleek,
personalized design.

Reliable Battery Performance

3.7V 1800mAh rechargeable battery, designed for all-day payment processing.

Expanded Highlights

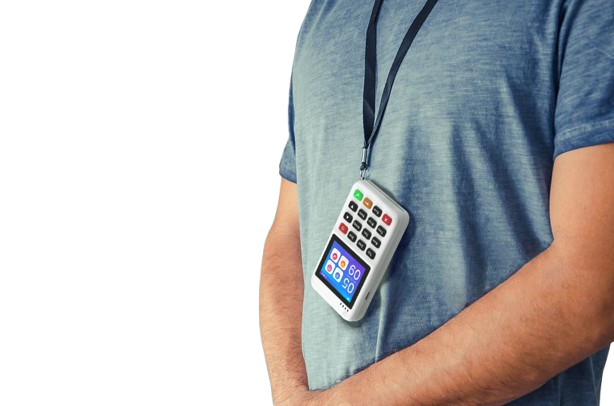

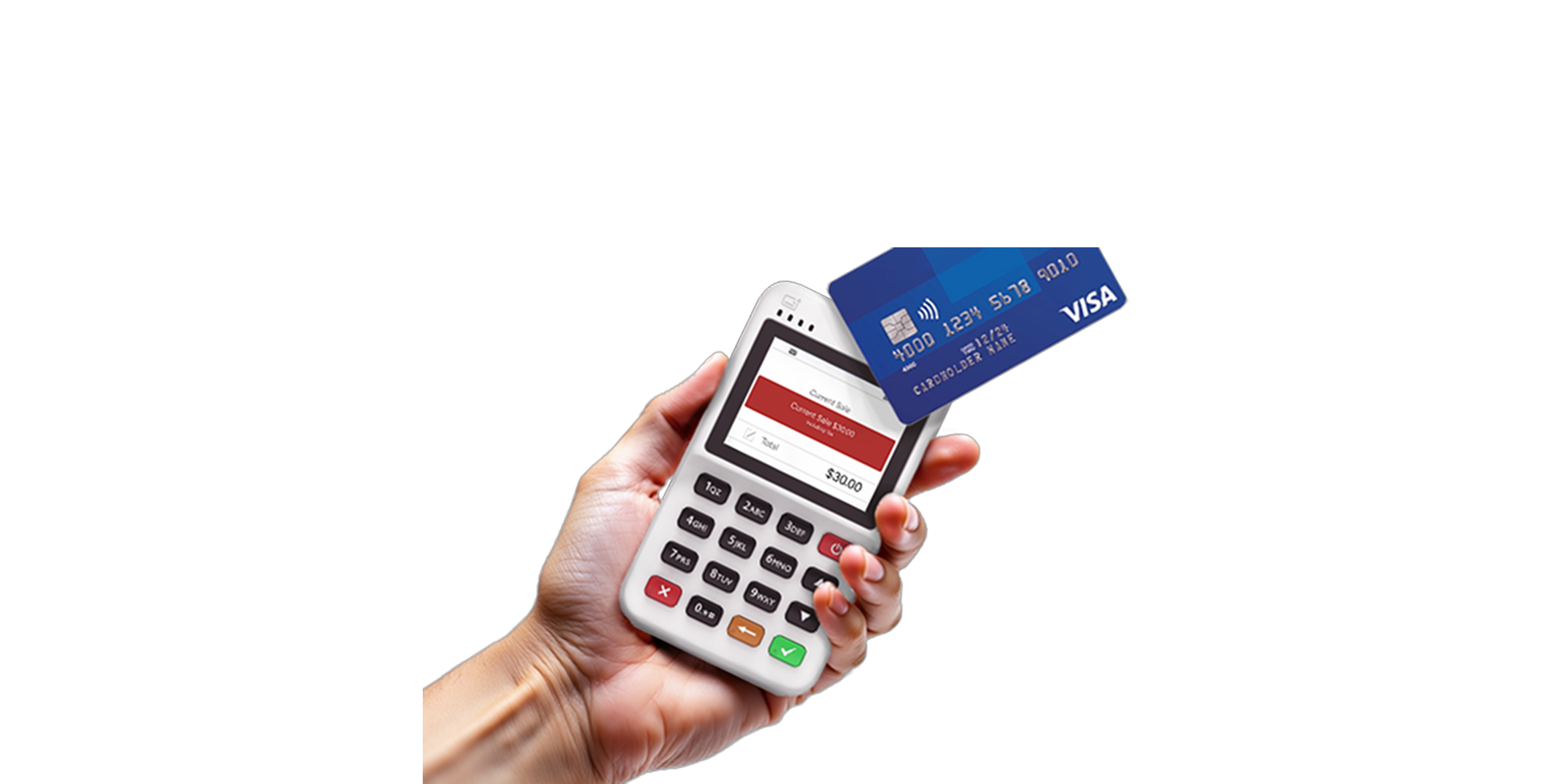

Compact
and
Lightweight

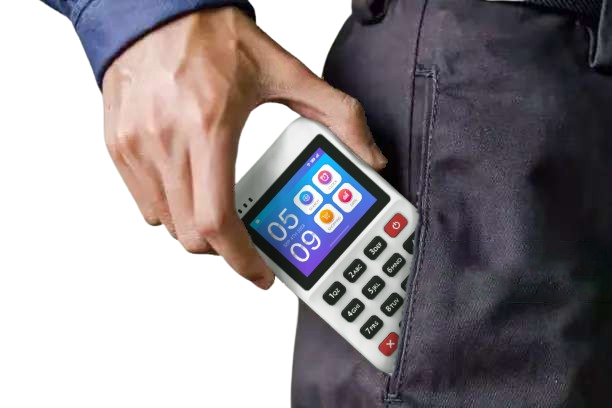

118mm x 68mm x 17mm, weighing only 156g, making it ideal for portable and countertop use.

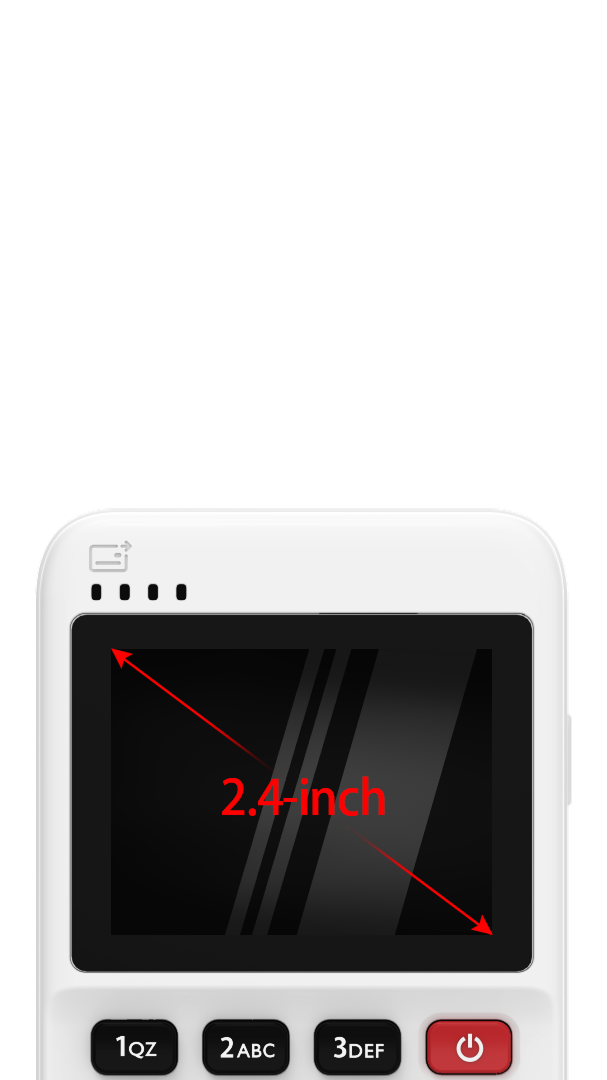

Intuitive User Experience

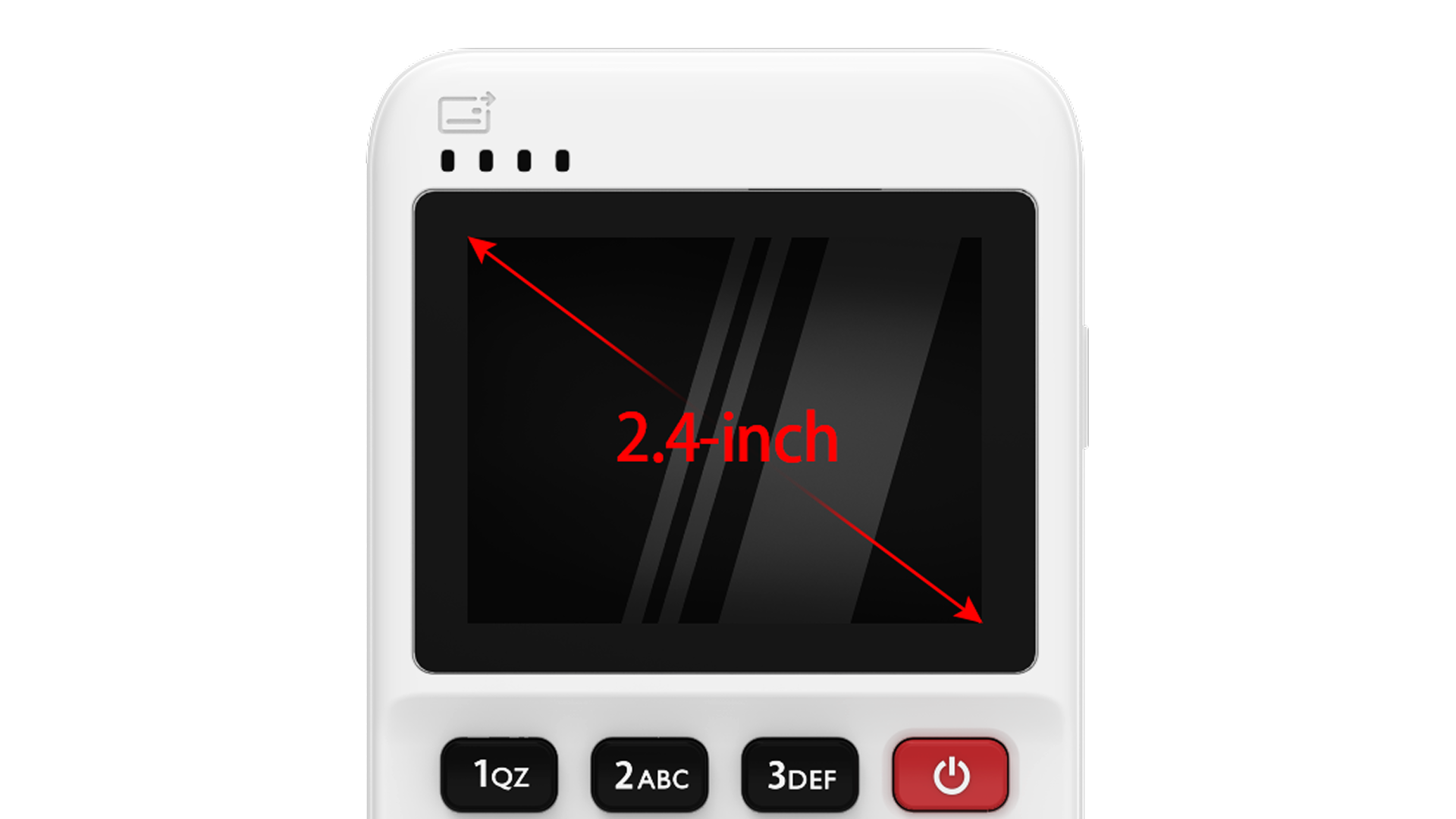

2.4-inch color TFT display (320 x 240 pixels) with optional touchscreen, ensuring seamless navigation and efficient operations.

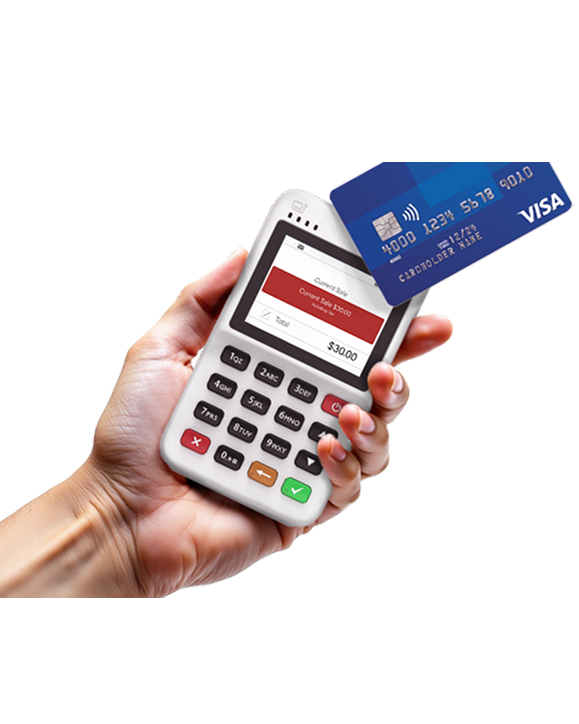

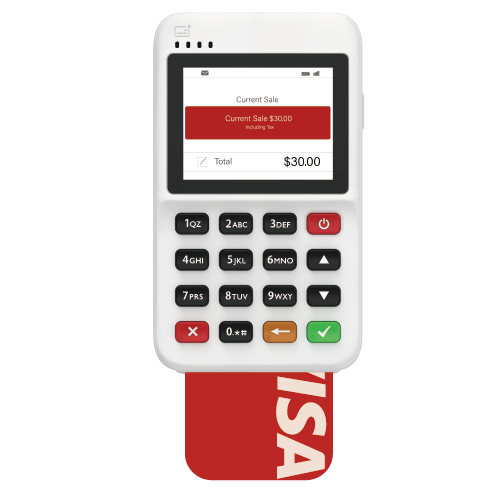

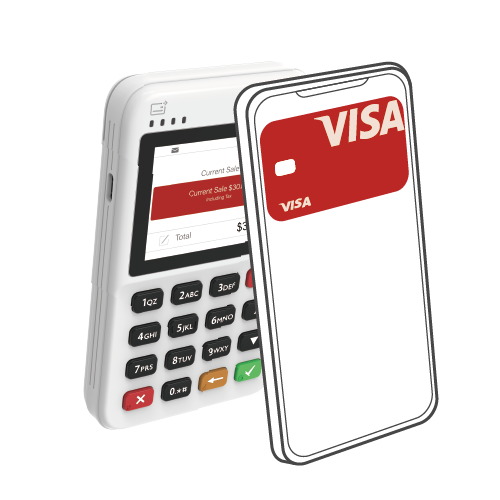

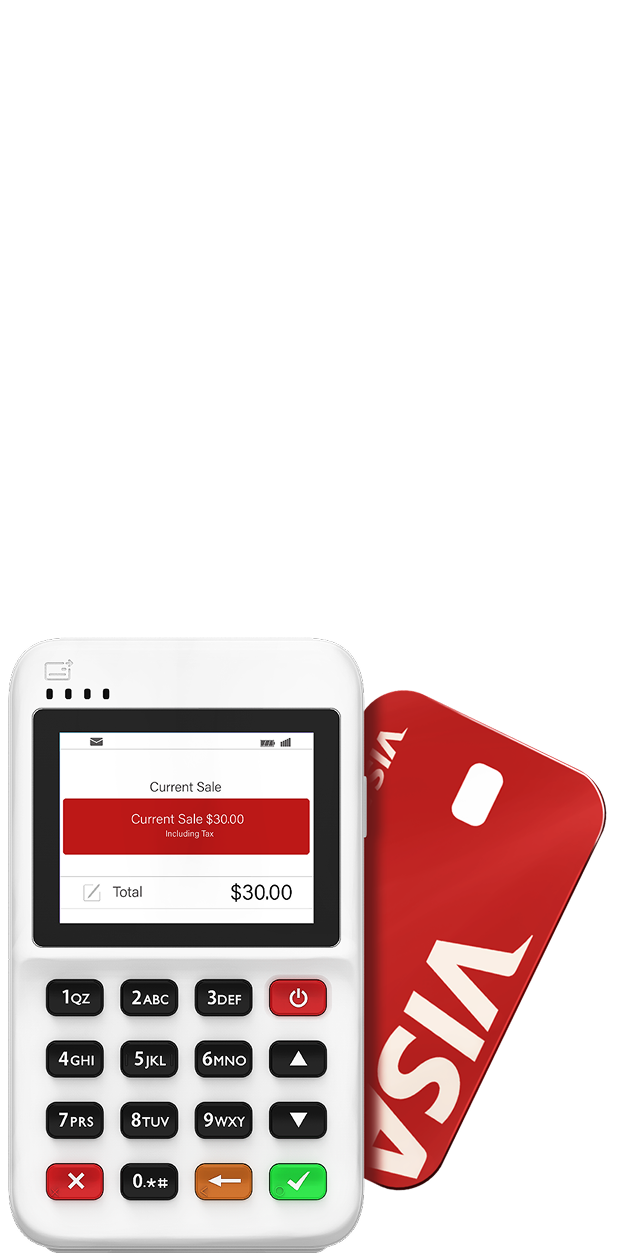

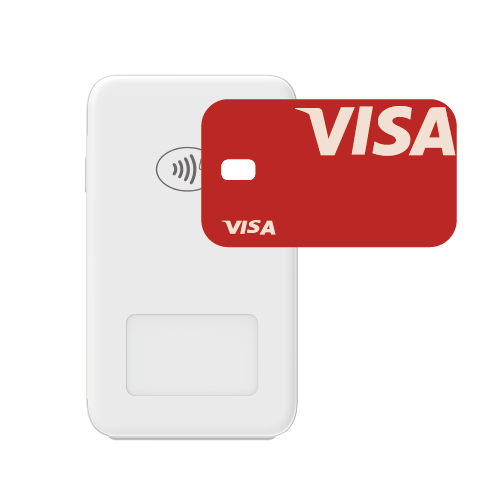

Versatile Payment Acceptance

Supports magstripe, EMV chip, and NFC contactless payments, providing maximum flexibility for businesses of all sizes.

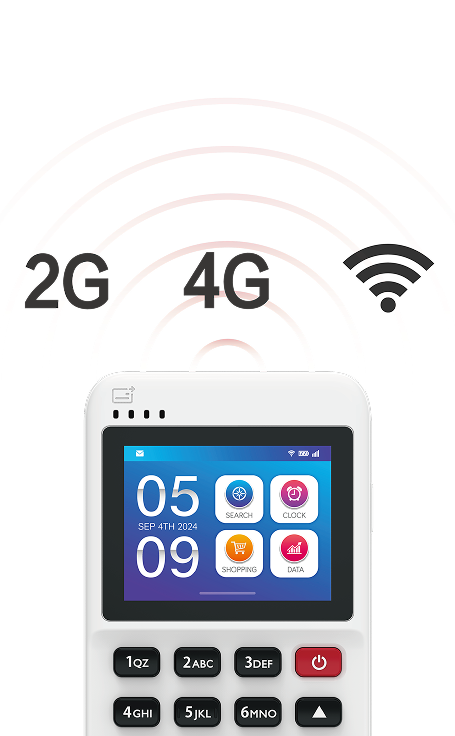

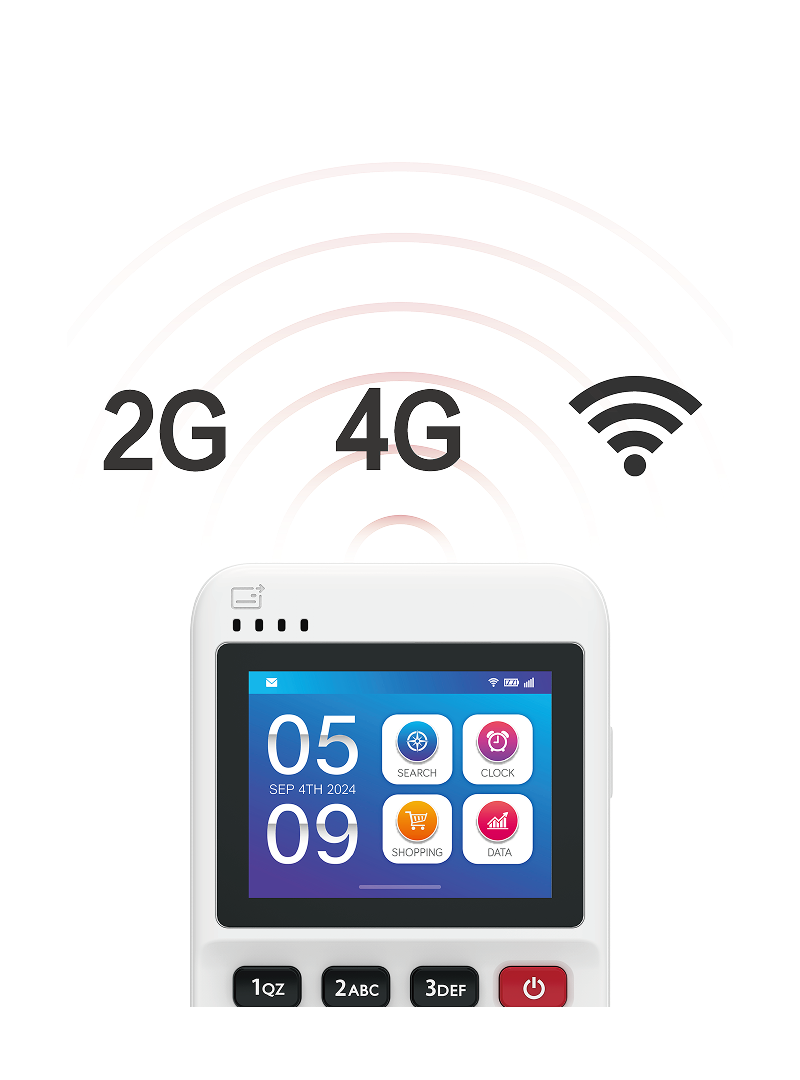

3 in 1

Seamless Connectivity

Fast mobile payments anywhere

Reliable backup connectivity

WiFi

Fast and stable wireless connection for seamless in-store payments

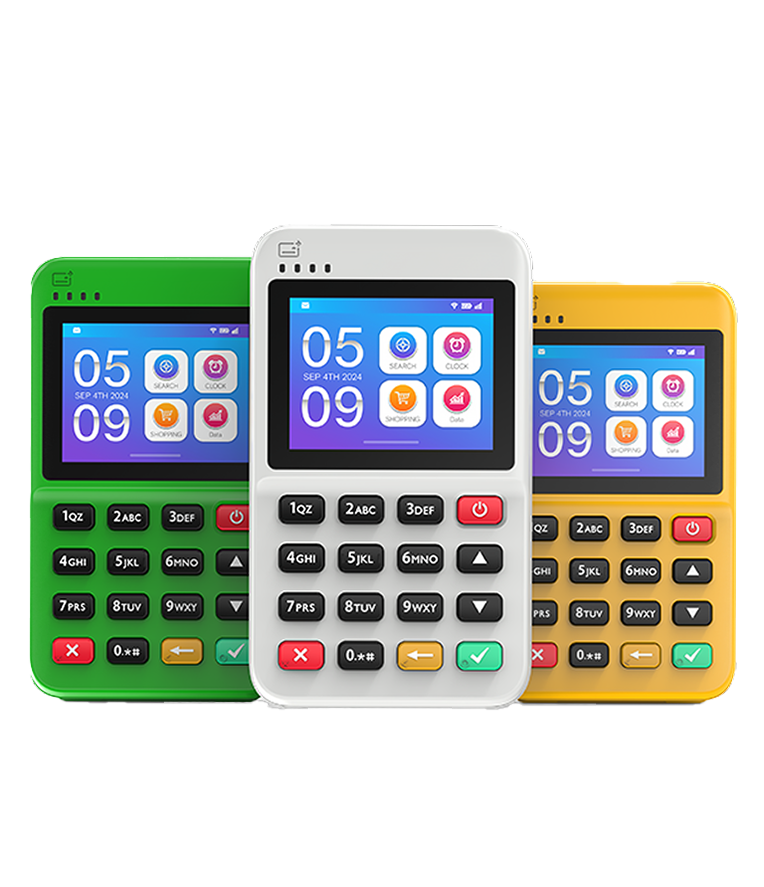

Brand Your Device
Own Your Identity

Tailored for Your Brand

Customize the device with a color that represents your brand, ensuring a professional and recognizable look.

Power That Keeps Up

1800mAh battery supports up to 800 swipes, 600 chip transactions, or 600 NFC payments on a single charge.
(Lab-tested; actual results may vary.)

1800mAh

Tested for Durability

Designed to withstand drops of up to 1 meter, ensuring reliability in demanding business environments.

Technical Specifications

OS

Linux

Processor

ARM Cortex-A7 Dual Core 1.0 GHz

Memory

128MB RAM, 128M Flash

Display

2.4" 320 x 240 Pixels TFT Display

Capacitive Touchscreen

Communications

4G/2G

WiFi: 802.11 b/g/n, 2.4GHz

Contactless Card Reader

EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare

Magnetic Card Reader

Triple track, conforming to ISO 7810/7811/7813, Bi-directional swiping

EMV Card Reader

EMV L1/L2, conforming to ISO 7816, compliant Class A, B, C

Audio

Built-in buzzer

Keys / Buttons

16 Keys: 0~9 | 5 Function Keys | 1 Power ON / OFF

Peripheral Ports

Type-C USB

1 Mini SIM + 1 Mini SAM

Battery

3.7V/1800mAh

Adapter/Power Supply

5V DC, 1A

Dimensions

118mm x 68mm x 17mm, 156g (Including Battery)

Environmental Conditions

Operating temperature: 0°C~45°C

Storage temperature: -20°C~60°C

Relative humidity: 5%~95% (Non-condensing)

Certifcations

PCI PTS 6.x with SRED

EMV L1&L2, Contactless L1

Visa Paywave, MasterCard Paypass

Amex Expresspay, Discover D-PAS

Rupay qSPARC, UnionPay QUICS, PURE

PCI PIN Security, MasterCard TQM

CE, FCC, RoHS,WEEE

Standard Accessories

1 USB cable

QPOS PLUS.pdf
1648.63KB

Cloud Services

Accessories

Included

Optional

USB Cable

Stickers
Lanyard
Table Stand

Certifications

Supports and Downloads

FAQ

What accessories are included with the QPOS PLUS?

The QPOS PLUS comes with a power adapter and USB cable, with optional accessories such as a thermal paper roll and a protective case.

How durable is the QPOS PLUS?

The QPOS PLUS is built to withstand drops of up to 1 meter, ensuring reliable performance in demanding business environments.

Does the QPOS PLUS support multiple card slots?

Yes, it includes Mini SIM and Mini SAM slots, providing enhanced security and expanded functionality.

What kind of display does the QPOS PLUS have?

The QPOS PLUS is equipped with a 2.4-inch TFT color display (320 x 240 pixels), with an optional touchscreen for intuitive operation.

Does the QPOS PLUS support wireless connectivity?

Yes, the QPOS PLUS features 4G and Wi-Fi (2.4GHz), ensuring reliable, fast, and stable transactions anytime, anywhere.

How long does the QPOS PLUS battery last?

Equipped with a 1800mAh battery, the QPOS PLUS is designed for extended usage, handling up to 800 swipes, 600 chip transactions, or 600 NFC payments on a single charge. (Lab-tested; results may vary.)

What types of payment methods does the QPOS PLUS support?

The QPOS PLUS supports magnetic stripe, EMV chip, and NFC contactless payments, ensuring flexibility for various transaction types.
